kcenon::monitoring::health_monitor Class Reference

Health monitor with dependency management, auto-recovery, and statistics. More...

#include <health_monitor.h>

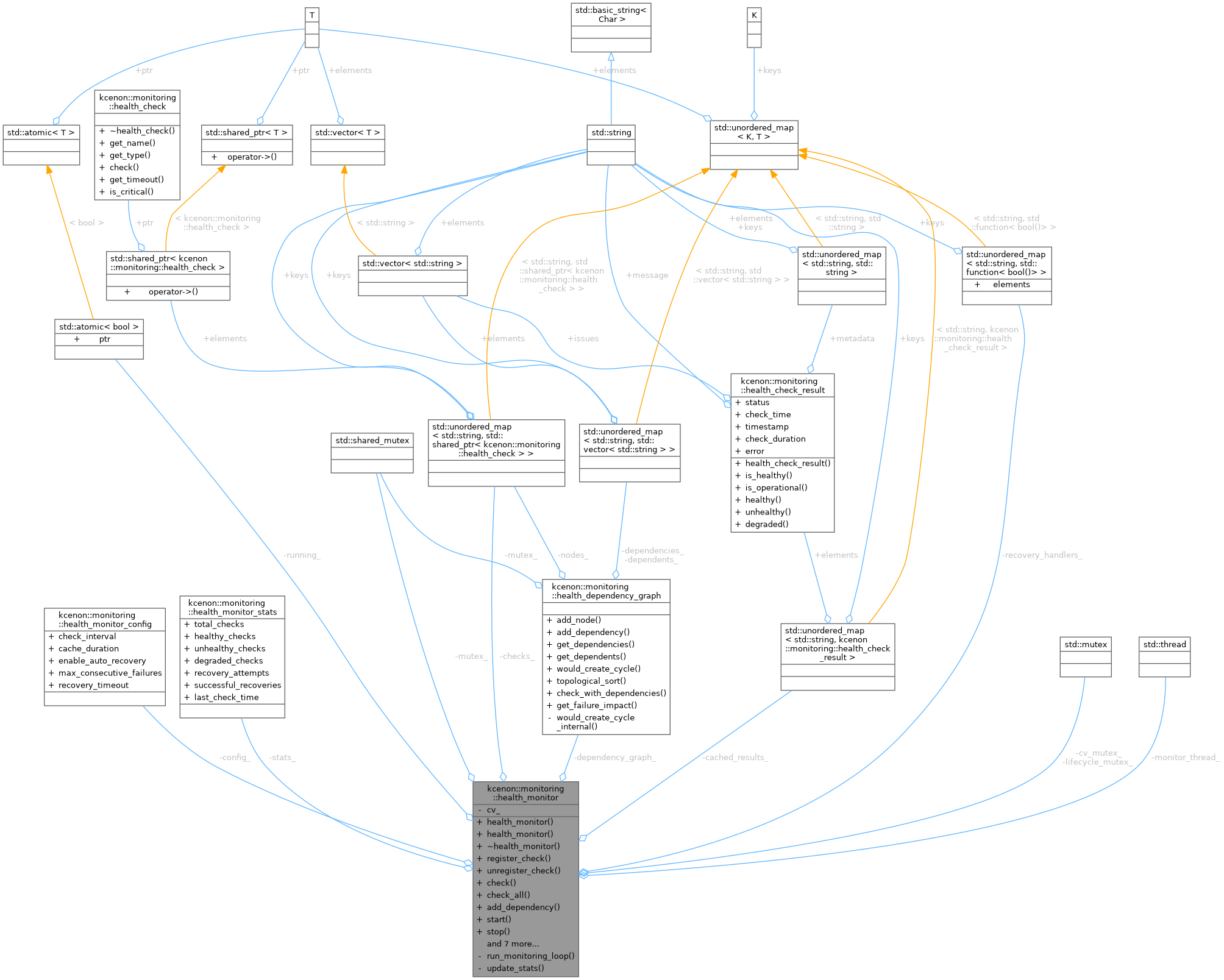

Collaboration diagram for kcenon::monitoring::health_monitor:

Public Member Functions
	health_monitor ()=default
	Default constructor with default configuration.
	health_monitor (const health_monitor_config &config)
	Construct with custom configuration.
virtual	~health_monitor ()
	Destructor. Stops the monitoring loop if running.
common::Result< bool >	register_check (const std::string &name, std::shared_ptr< health_check > check)
	Register a named health check.
common::Result< bool >	unregister_check (const std::string &name)
	Remove a previously registered health check.
common::Result< health_check_result >	check (const std::string &name)
	Execute a single named health check (with dependency verification).
std::unordered_map< std::string, health_check_result >	check_all ()
	Execute all registered health checks.
common::Result< bool >	add_dependency (const std::string &dependent, const std::string &dependency)
	Add a dependency between two registered health checks.
common::VoidResult	start ()
	Start the periodic health monitoring background thread.
common::VoidResult	stop ()
	Stop the periodic health monitoring background thread.
bool	is_running () const
	Check whether the monitoring background thread is running.
void	refresh ()
	Manually refresh all health checks and trigger recovery if needed.
void	register_recovery_handler (const std::string &check_name, std::function< bool()> handler)
	Register a recovery handler for a named health check.
health_status	get_overall_status ()
	Get the aggregate health status across all cached results.
health_monitor_stats	get_stats () const
	Get accumulated health monitoring statistics.
std::string	get_health_report ()
	Generate a human-readable health report.
health_check_result	check_health () const
	Quick self-check of the health monitor itself.

Private Member Functions
void	run_monitoring_loop ()
void	update_stats (const health_check_result &result)

Private Attributes
health_monitor_config	config_
health_monitor_stats	stats_
health_dependency_graph	dependency_graph_
std::shared_mutex	mutex_
std::mutex	lifecycle_mutex_
std::mutex	cv_mutex_
std::condition_variable	cv_
std::unordered_map< std::string, std::shared_ptr< health_check > >	checks_
std::unordered_map< std::string, std::function< bool()> >	recovery_handlers_
std::unordered_map< std::string, health_check_result >	cached_results_
std::atomic< bool >	running_ {false}
std::thread	monitor_thread_

Detailed Description

Health monitor with dependency management, auto-recovery, and statistics.

Manages a collection of named health checks, runs them periodically on a background thread, maintains cached results, and optionally invokes recovery handlers when checks fail.

Lifecycle

1. Create monitor with optional configuration
2. Register health checks and optional recovery handlers
3. Call start() to begin periodic monitoring
4. Query status via get_overall_status(), check(), or get_health_report()
5. Call stop() or let the destructor handle cleanup

Thread Safety

All public methods are thread-safe. Internal state is protected by std::shared_mutex (data) and std::mutex (lifecycle).

See also

health_check For the check interface

health_check_builder For creating checks

health_dependency_graph For dependency management

Examples

health_reliability_example.cpp, and production_monitoring_example.cpp.

Definition at line 696 of file health_monitor.h.

Constructor & Destructor Documentation

health_monitor() [1/2]

kcenon::monitoring::health_monitor::health_monitor ( )

default

Default constructor with default configuration.

health_monitor() [2/2]

kcenon::monitoring::health_monitor::health_monitor ( const health_monitor_config & config )

inlineexplicit

Construct with custom configuration.

Parameters

config

Health monitor configuration settings

Definition at line 705 of file health_monitor.h.

: config_(config) {}

~health_monitor()

virtual kcenon::monitoring::health_monitor::~health_monitor ( )

inlinevirtual

Destructor. Stops the monitoring loop if running.

Definition at line 708 of file health_monitor.h.

{ stop(); }

References stop().

Here is the call graph for this function:

Member Function Documentation

add_dependency()

common::Result< bool > kcenon::monitoring::health_monitor::add_dependency ( const std::string & dependent, const std::string & dependency )

inline

Add a dependency between two registered health checks.

Parameters

dependent	Name of the check that depends on another
dependency	Name of the check being depended upon

Returns

Ok(true) on success, or error if checks not found or cycle detected

Definition at line 795 of file health_monitor.h.

                                                                                               {
        std::lock_guard<std::shared_mutex> lock(mutex_);
        return dependency_graph_.add_dependency(dependent, dependency);
    }

References kcenon::monitoring::health_dependency_graph::add_dependency(), dependency_graph_, and mutex_.

Here is the call graph for this function:

check()

common::Result< health_check_result > kcenon::monitoring::health_monitor::check ( const std::string & name )

inline

Execute a single named health check (with dependency verification).

Parameters

name	Name of the check to execute

Returns

Ok(result) on success, or error if the check was not found

Definition at line 756 of file health_monitor.h.

                                                                   {
        std::lock_guard<std::shared_mutex> lock(mutex_);

        auto it = checks_.find(name);
        if (it == checks_.end()) {
            error_info err(monitoring_error_code::not_found,
                          "Check '" + name + "' not found");
            return common::Result<health_check_result>::err(err.to_common_error());
        }

        auto result = dependency_graph_.check_with_dependencies(name);
        update_stats(result);
        cached_results_[name] = result;
        return common::ok(result);
    }

References cached_results_, kcenon::monitoring::health_dependency_graph::check_with_dependencies(), checks_, dependency_graph_, mutex_, kcenon::monitoring::not_found, kcenon::monitoring::error_info::to_common_error(), and update_stats().

Referenced by check_all(), refresh(), and register_check().

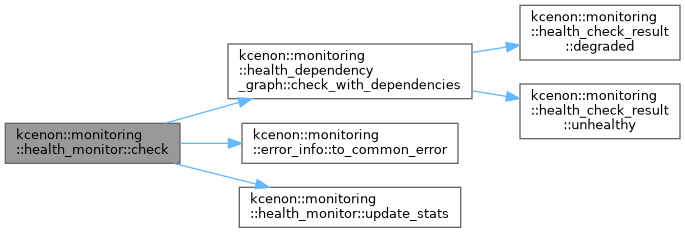

Here is the call graph for this function:

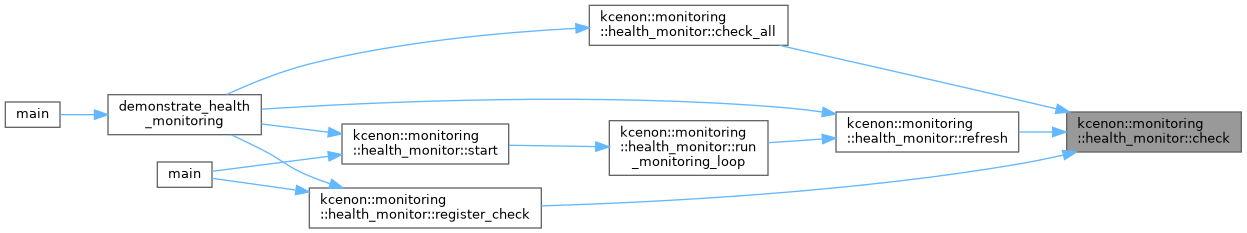

Here is the caller graph for this function:

check_all()

std::unordered_map< std::string, health_check_result > kcenon::monitoring::health_monitor::check_all ( )

inline

Execute all registered health checks.

Returns

Map of check name to result for every registered check

Definition at line 776 of file health_monitor.h.

                                                                 {
        std::lock_guard<std::shared_mutex> lock(mutex_);

        std::unordered_map<std::string, health_check_result> results;
        for (const auto& [name, check] : checks_) {
            auto result = check->check();
            results[name] = result;
            cached_results_[name] = result;
            update_stats(result);
        }
        return results;
    }

References cached_results_, check(), checks_, mutex_, and update_stats().

Referenced by demonstrate_health_monitoring().

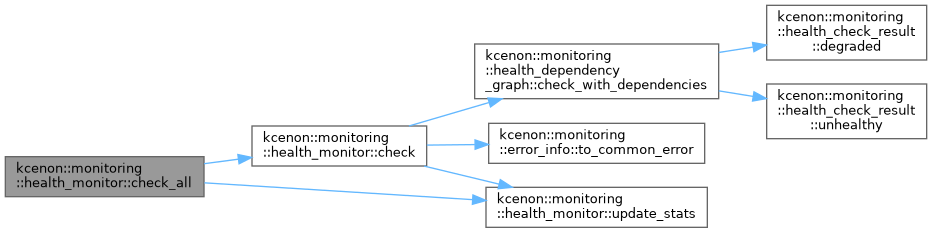

Here is the call graph for this function:

Here is the caller graph for this function:

check_health()

health_check_result kcenon::monitoring::health_monitor::check_health ( ) const

inline

Quick self-check of the health monitor itself.

Returns

Always returns healthy with "Health monitor operational" message

Definition at line 961 of file health_monitor.h.

                                             {
        health_check_result result;
        result.status = health_status::healthy;
        result.message = "Health monitor operational";
        result.timestamp = std::chrono::system_clock::now();
        return result;
    }

References kcenon::monitoring::healthy, kcenon::monitoring::health_check_result::message, kcenon::monitoring::health_check_result::status, and kcenon::monitoring::health_check_result::timestamp.

Referenced by main().

Here is the caller graph for this function:

get_health_report()

std::string kcenon::monitoring::health_monitor::get_health_report ( )

inline

Generate a human-readable health report.

Returns

Multi-line string summarizing the status of all cached checks

Definition at line 925 of file health_monitor.h.

                                  {
        std::shared_lock<std::shared_mutex> lock(mutex_);

        std::string report = "Health Report:\n";

        if (cached_results_.empty()) {
            report += "  No health checks have been performed yet.\n";
            return report;
        }

        for (const auto& [name, result] : cached_results_) {
            report += "  " + name + ": ";
            switch (result.status) {
                case health_status::healthy:
                    report += "HEALTHY";
                    break;
                case health_status::degraded:
                    report += "DEGRADED";
                    break;
                case health_status::unhealthy:
                    report += "UNHEALTHY";
                    break;
                default:
                    report += "UNKNOWN";
                    break;
            }
            report += " - " + result.message + "\n";
        }

        return report;
    }

References cached_results_, kcenon::monitoring::degraded, kcenon::monitoring::healthy, mutex_, and kcenon::monitoring::unhealthy.

Referenced by demonstrate_health_monitoring().

Here is the caller graph for this function:

get_overall_status()

health_status kcenon::monitoring::health_monitor::get_overall_status ( )

inline

Get the aggregate health status across all cached results.

Returns

healthy if all checks pass, degraded if any are degraded, unhealthy if any are unhealthy, unknown if no results exist

Definition at line 889 of file health_monitor.h.

                                       {
        std::shared_lock<std::shared_mutex> lock(mutex_);

        if (checks_.empty()) {
            return cached_results_.empty() ? health_status::healthy : health_status::unknown;
        }

        bool has_unhealthy = false;
        bool has_degraded = false;

        for (const auto& [name, result] : cached_results_) {
            if (result.status == health_status::unhealthy) {
                has_unhealthy = true;
            } else if (result.status == health_status::degraded) {
                has_degraded = true;
            }
        }

        if (has_unhealthy) return health_status::unhealthy;
        if (has_degraded) return health_status::degraded;
        return health_status::healthy;
    }

References cached_results_, checks_, kcenon::monitoring::degraded, kcenon::monitoring::healthy, mutex_, kcenon::monitoring::unhealthy, and kcenon::monitoring::unknown.

Referenced by demonstrate_health_monitoring().

Here is the caller graph for this function:

get_stats()

health_monitor_stats kcenon::monitoring::health_monitor::get_stats ( ) const

inline

Get accumulated health monitoring statistics.

Returns

Copy of the current statistics

Definition at line 916 of file health_monitor.h.

                                           {
        std::shared_lock<std::shared_mutex> lock(mutex_);
        return stats_;
    }

References mutex_, and stats_.

is_running()

bool kcenon::monitoring::health_monitor::is_running ( ) const

inline

Check whether the monitoring background thread is running.

Returns

true if the monitoring loop is active

Definition at line 841 of file health_monitor.h.

                            {
        return running_.load();
    }

References running_.

refresh()

void kcenon::monitoring::health_monitor::refresh ( )

inline

Manually refresh all health checks and trigger recovery if needed.

Runs every registered check, updates cached results and statistics, and invokes recovery handlers for unhealthy checks when auto-recovery is enabled.

Definition at line 851 of file health_monitor.h.

                   {
        std::lock_guard<std::shared_mutex> lock(mutex_);

        for (const auto& [name, check] : checks_) {
            auto result = check->check();
            cached_results_[name] = result;
            update_stats(result);

            if (result.status == health_status::unhealthy) {
                auto it = recovery_handlers_.find(name);
                if (it != recovery_handlers_.end() && config_.enable_auto_recovery) {
                    stats_.recovery_attempts++;
                    if (it->second()) {
                        stats_.successful_recoveries++;
                    }
                }
            }
        }

        stats_.last_check_time = std::chrono::system_clock::now();
    }

References cached_results_, check(), checks_, config_, kcenon::monitoring::health_monitor_config::enable_auto_recovery, kcenon::monitoring::health_monitor_stats::last_check_time, mutex_, kcenon::monitoring::health_monitor_stats::recovery_attempts, recovery_handlers_, stats_, kcenon::monitoring::health_monitor_stats::successful_recoveries, kcenon::monitoring::unhealthy, and update_stats().

Referenced by demonstrate_health_monitoring(), and run_monitoring_loop().

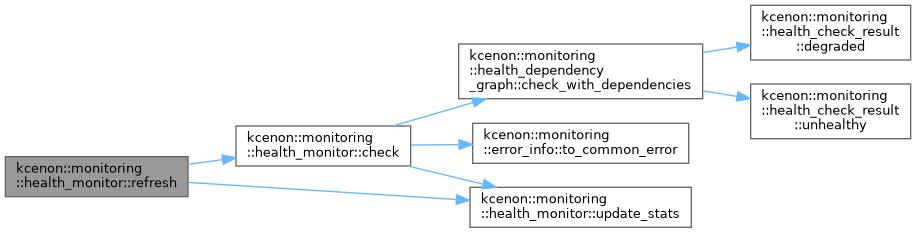

Here is the call graph for this function:

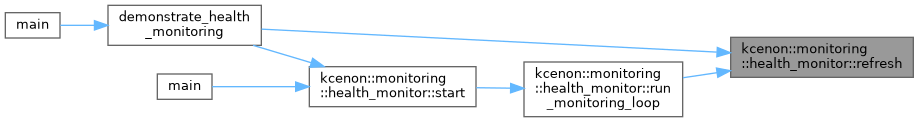

Here is the caller graph for this function:

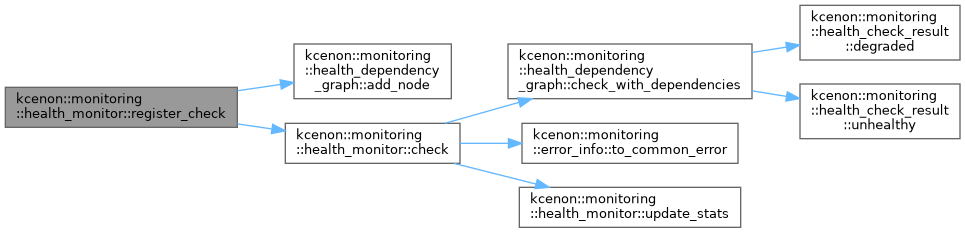

register_check()

common::Result< bool > kcenon::monitoring::health_monitor::register_check ( const std::string & name, std::shared_ptr< health_check > check )

inline

Register a named health check.

Parameters

name	Unique name for this check
check	The health check implementation

Returns

Ok(true) on success, or error if the name already exists

Definition at line 716 of file health_monitor.h.

                                                                                                {
        std::lock_guard<std::shared_mutex> lock(mutex_);

        if (checks_.find(name) != checks_.end()) {
            return common::Result<bool>::err(error_info(monitoring_error_code::already_exists, "Check '" + name + "' already registered").to_common_error());
        }

        checks_[name] = std::move(check);
        auto graph_result = dependency_graph_.add_node(name, checks_[name]);
        if (graph_result.is_err()) {
            checks_.erase(name);
            return common::Result<bool>::err(graph_result.error());
        }
        return common::ok(true);
    }

References kcenon::monitoring::health_dependency_graph::add_node(), kcenon::monitoring::already_exists, check(), checks_, dependency_graph_, and mutex_.

Referenced by demonstrate_health_monitoring(), and main().

Here is the call graph for this function:

Here is the caller graph for this function:

register_recovery_handler()

void kcenon::monitoring::health_monitor::register_recovery_handler ( const std::string & check_name, std::function< bool()> handler )

inline

Register a recovery handler for a named health check.

Parameters

check_name	Name of the health check this handler is for
handler	Callable that attempts recovery; returns true on success

Definition at line 878 of file health_monitor.h.

                                                                {
        std::lock_guard<std::shared_mutex> lock(mutex_);
        recovery_handlers_[check_name] = std::move(handler);
    }

References mutex_, and recovery_handlers_.

Referenced by demonstrate_health_monitoring().

Here is the caller graph for this function:

run_monitoring_loop()

void kcenon::monitoring::health_monitor::run_monitoring_loop ( )

inlineprivate

Definition at line 970 of file health_monitor.h.

                               {
        while (running_.load()) {
            refresh();

            std::unique_lock<std::mutex> lock(cv_mutex_);
            cv_.wait_for(lock, config_.check_interval, [this]() {
                return !running_.load();
            });
        }
    }

References kcenon::monitoring::health_monitor_config::check_interval, config_, cv_, cv_mutex_, refresh(), and running_.

Referenced by start().

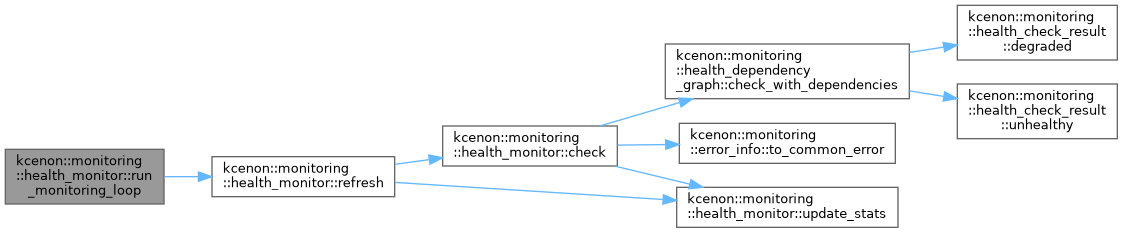

Here is the call graph for this function:

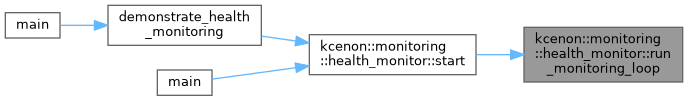

Here is the caller graph for this function:

start()

common::VoidResult kcenon::monitoring::health_monitor::start ( )

inline

Start the periodic health monitoring background thread.

Returns

Ok on success; no-op if already running

Definition at line 804 of file health_monitor.h.

                             {
        std::lock_guard<std::mutex> lock(lifecycle_mutex_);

        if (running_.load()) {
            return common::ok();
        }

        running_.store(true);
        monitor_thread_ = std::thread([this]() { run_monitoring_loop(); });
        return common::ok();
    }

References lifecycle_mutex_, monitor_thread_, run_monitoring_loop(), and running_.

Referenced by demonstrate_health_monitoring(), and main().

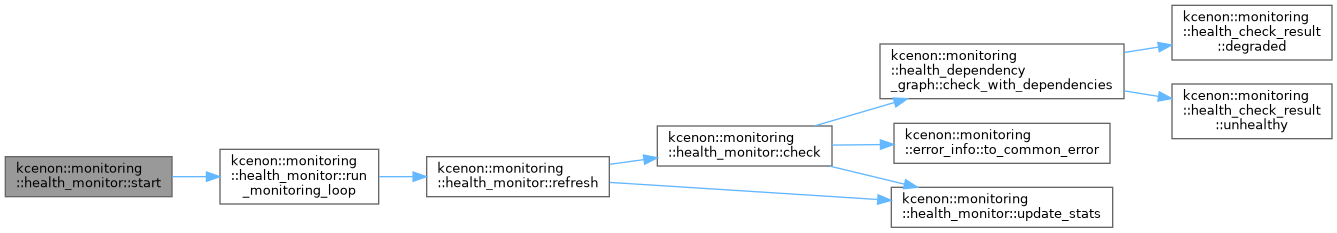

Here is the call graph for this function:

Here is the caller graph for this function:

stop()

common::VoidResult kcenon::monitoring::health_monitor::stop ( )

inline

Stop the periodic health monitoring background thread.

Returns

Ok on success; no-op if not running. Blocks until the thread joins.

Definition at line 820 of file health_monitor.h.

                            {
        std::lock_guard<std::mutex> lock(lifecycle_mutex_);

        if (!running_.load()) {
            return common::ok();
        }

        running_.store(false);
        cv_.notify_all();

        if (monitor_thread_.joinable()) {
            monitor_thread_.join();
        }

        return common::ok();
    }

References cv_, lifecycle_mutex_, monitor_thread_, and running_.

Referenced by demonstrate_health_monitoring(), main(), HealthMonitoringTest::SetUp(), HealthMonitoringTest::TearDown(), and ~health_monitor().

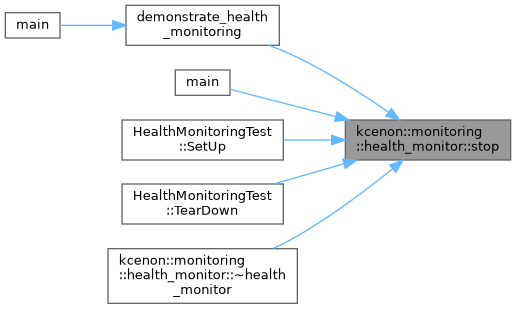

Here is the caller graph for this function:

unregister_check()

common::Result< bool > kcenon::monitoring::health_monitor::unregister_check ( const std::string & name )

inline

Remove a previously registered health check.

Parameters

name	Name of the check to remove

Returns

Ok(true) on success, or error if the check was not found

Definition at line 737 of file health_monitor.h.

                                                               {
        std::lock_guard<std::shared_mutex> lock(mutex_);

        if (checks_.find(name) == checks_.end()) {
            error_info err(monitoring_error_code::not_found,
                          "Check '" + name + "' not found");
            return common::Result<bool>::err(err.to_common_error());
        }

        checks_.erase(name);
        recovery_handlers_.erase(name);
        return common::ok(true);
    }

References checks_, mutex_, kcenon::monitoring::not_found, recovery_handlers_, and kcenon::monitoring::error_info::to_common_error().

Here is the call graph for this function:

update_stats()

void kcenon::monitoring::health_monitor::update_stats ( const health_check_result & result )

inlineprivate

Definition at line 981 of file health_monitor.h.

                                                         {
        stats_.total_checks++;
        switch (result.status) {
            case health_status::healthy:
                stats_.healthy_checks++;
                break;
            case health_status::unhealthy:
                stats_.unhealthy_checks++;
                break;
            case health_status::degraded:
                stats_.degraded_checks++;
                break;
            default:
                break;
        }
    }

References kcenon::monitoring::degraded, kcenon::monitoring::health_monitor_stats::degraded_checks, kcenon::monitoring::healthy, kcenon::monitoring::health_monitor_stats::healthy_checks, stats_, kcenon::monitoring::health_check_result::status, kcenon::monitoring::health_monitor_stats::total_checks, kcenon::monitoring::unhealthy, and kcenon::monitoring::health_monitor_stats::unhealthy_checks.

Referenced by check(), check_all(), and refresh().

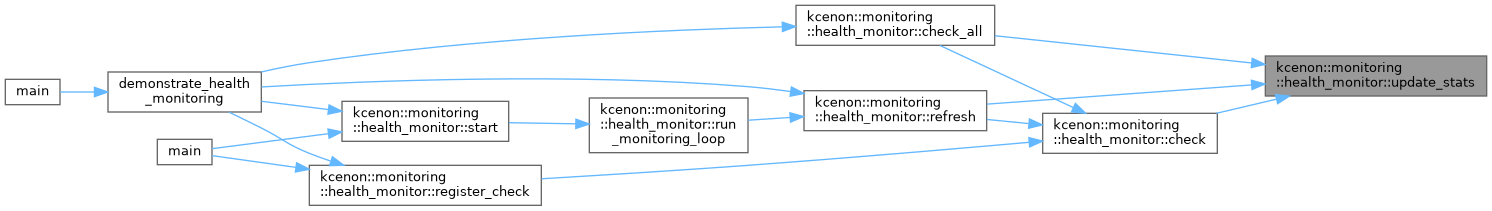

Here is the caller graph for this function:

Member Data Documentation

cached_results_

std::unordered_map<std::string, health_check_result> kcenon::monitoring::health_monitor::cached_results_

private

Definition at line 1009 of file health_monitor.h.

Referenced by check(), check_all(), get_health_report(), get_overall_status(), and refresh().

checks_

std::unordered_map<std::string, std::shared_ptr<health_check> > kcenon::monitoring::health_monitor::checks_

private

Definition at line 1007 of file health_monitor.h.

Referenced by check(), check_all(), get_overall_status(), refresh(), register_check(), and unregister_check().

config_

health_monitor_config kcenon::monitoring::health_monitor::config_

private

Definition at line 998 of file health_monitor.h.

Referenced by refresh(), and run_monitoring_loop().

cv_

std::condition_variable kcenon::monitoring::health_monitor::cv_

private

Definition at line 1005 of file health_monitor.h.

Referenced by run_monitoring_loop(), and stop().

cv_mutex_

std::mutex kcenon::monitoring::health_monitor::cv_mutex_

private

Definition at line 1004 of file health_monitor.h.

Referenced by run_monitoring_loop().

dependency_graph_

health_dependency_graph kcenon::monitoring::health_monitor::dependency_graph_

private

Definition at line 1000 of file health_monitor.h.

Referenced by add_dependency(), check(), and register_check().

lifecycle_mutex_

std::mutex kcenon::monitoring::health_monitor::lifecycle_mutex_

private

Definition at line 1003 of file health_monitor.h.

Referenced by start(), and stop().

monitor_thread_

std::thread kcenon::monitoring::health_monitor::monitor_thread_

private

Definition at line 1012 of file health_monitor.h.

Referenced by start(), and stop().

mutex_

std::shared_mutex kcenon::monitoring::health_monitor::mutex_

mutableprivate

Definition at line 1002 of file health_monitor.h.

Referenced by add_dependency(), check(), check_all(), get_health_report(), get_overall_status(), get_stats(), refresh(), register_check(), register_recovery_handler(), and unregister_check().

recovery_handlers_

std::unordered_map<std::string, std::function<bool()> > kcenon::monitoring::health_monitor::recovery_handlers_

private

Definition at line 1008 of file health_monitor.h.

Referenced by refresh(), register_recovery_handler(), and unregister_check().

running_

std::atomic<bool> kcenon::monitoring::health_monitor::running_ {false}

private

Definition at line 1011 of file health_monitor.h.

{false};

Referenced by is_running(), run_monitoring_loop(), start(), and stop().

stats_

health_monitor_stats kcenon::monitoring::health_monitor::stats_

private

Definition at line 999 of file health_monitor.h.

Referenced by get_stats(), refresh(), and update_stats().

---

The documentation for this class was generated from the following file:

• include/kcenon/monitoring/health/health_monitor.h
