Fault tolerance manager template class. More...

#include <fault_tolerance_manager.h>

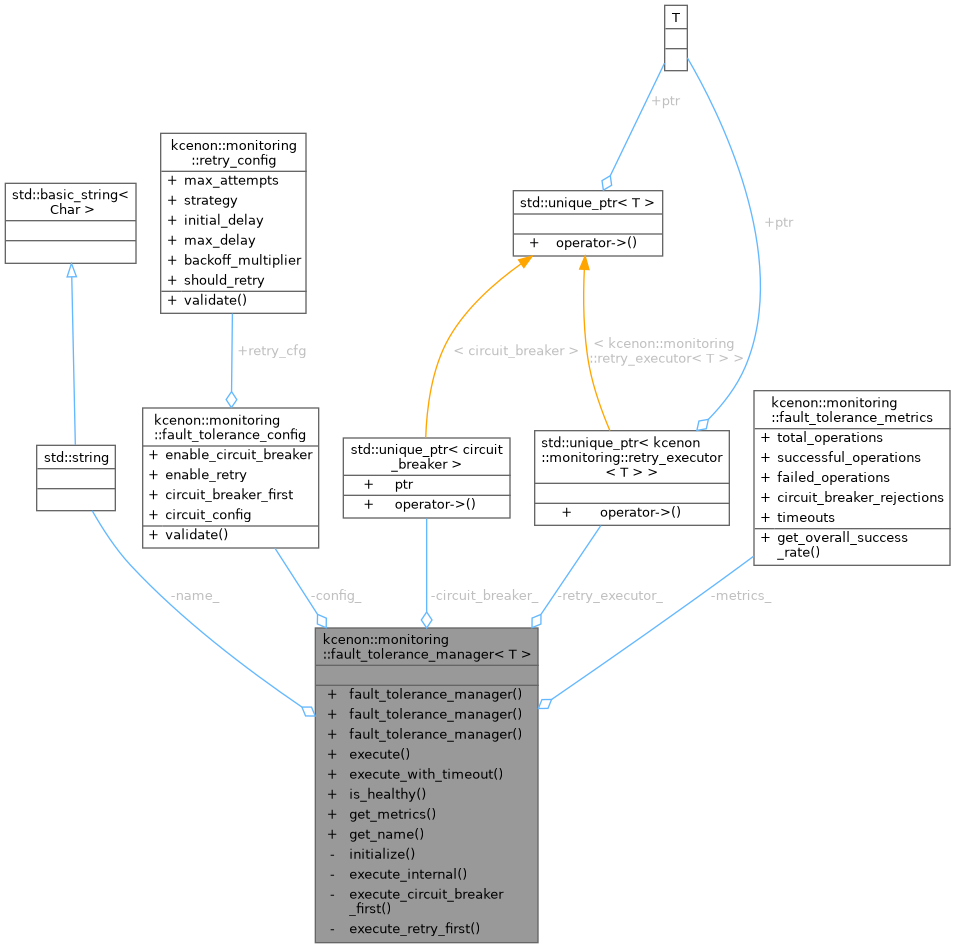

Collaboration diagram for kcenon::monitoring::fault_tolerance_manager< T >:

Public Member Functions
	fault_tolerance_manager ()

	fault_tolerance_manager (const std::string &name)

	fault_tolerance_manager (const std::string &name, const fault_tolerance_config &cfg)

template<typename Func >
common::Result< T >	execute (Func &&func)
	Execute a function with fault tolerance.

template<typename Func >
common::Result< T >	execute_with_timeout (Func &&func, std::chrono::milliseconds timeout)
	Execute a function with timeout.

common::Result< bool >	is_healthy ()
	Check if fault tolerance manager is healthy.

fault_tolerance_metrics	get_metrics () const
	Get fault tolerance metrics.

const std::string &	get_name () const
	Get manager name.

Private Member Functions
void	initialize ()

template<typename Func >
common::Result< T >	execute_internal (Func &&func)

template<typename Func >
common::Result< T >	execute_circuit_breaker_first (Func &&func)

template<typename Func >
common::Result< T >	execute_retry_first (Func &&func)

Private Attributes
std::string	name_

fault_tolerance_config	config_

std::unique_ptr< circuit_breaker >	circuit_breaker_

std::unique_ptr< retry_executor< T > >	retry_executor_

fault_tolerance_metrics	metrics_

Detailed Description

template<typename T>
class kcenon::monitoring::fault_tolerance_manager< T >

Fault tolerance manager template class.

Combines circuit breaker and retry logic for resilient operations.

Template Parameters

T	The return value type of operations

Definition at line 105 of file fault_tolerance_manager.h.

Constructor & Destructor Documentation

◆ fault_tolerance_manager() [1/3]

template<typename T >

kcenon::monitoring::fault_tolerance_manager< T >::fault_tolerance_manager ( )

inline

Definition at line 107 of file fault_tolerance_manager.h.

                              : name_("default"), config_() {
        initialize();
    }

References kcenon::monitoring::fault_tolerance_manager< T >::initialize().

Here is the call graph for this function:

◆ fault_tolerance_manager() [2/3]

template<typename T >

kcenon::monitoring::fault_tolerance_manager< T >::fault_tolerance_manager ( const std::string & name )

inlineexplicit

Definition at line 111 of file fault_tolerance_manager.h.

        : name_(name), config_() {
        initialize();
    }

References kcenon::monitoring::fault_tolerance_manager< T >::initialize().

Here is the call graph for this function:

◆ fault_tolerance_manager() [3/3]

template<typename T >

kcenon::monitoring::fault_tolerance_manager< T >::fault_tolerance_manager	(	const std::string &	name,
		const fault_tolerance_config &	cfg )

inlineexplicit

Definition at line 116 of file fault_tolerance_manager.h.

        : name_(name), config_(cfg) {
        initialize();
    }

References kcenon::monitoring::fault_tolerance_manager< T >::initialize().

Here is the call graph for this function:

Member Function Documentation

◆ execute()

template<typename T >

template<typename Func >

common::Result< T > kcenon::monitoring::fault_tolerance_manager< T >::execute ( Func && func )

inline

Execute a function with fault tolerance.

Template Parameters

Func	The function type to execute (must return common::Result<T>)

Parameters

func	The function to execute

Returns: common::Result<T> containing success value or error

Definition at line 129 of file fault_tolerance_manager.h.

                                         {
        metrics_.total_operations++;

        common::Result<T> op_result = common::Result<T>::err(error_info(monitoring_error_code::operation_failed, "Not executed").to_common_error());

        if (config_.circuit_breaker_first) {
            op_result = execute_circuit_breaker_first(std::forward<Func>(func));
        } else {
            op_result = execute_retry_first(std::forward<Func>(func));
        }

        if (op_result.is_ok()) {
            metrics_.successful_operations++;
        } else {
            metrics_.failed_operations++;
        }

        return op_result;
    }

References kcenon::monitoring::fault_tolerance_config::circuit_breaker_first, kcenon::monitoring::fault_tolerance_manager< T >::config_, kcenon::monitoring::fault_tolerance_manager< T >::execute_circuit_breaker_first(), kcenon::monitoring::fault_tolerance_manager< T >::execute_retry_first(), kcenon::monitoring::fault_tolerance_metrics::failed_operations, kcenon::monitoring::fault_tolerance_manager< T >::metrics_, kcenon::monitoring::operation_failed, kcenon::monitoring::fault_tolerance_metrics::successful_operations, and kcenon::monitoring::fault_tolerance_metrics::total_operations.

Referenced by TEST_F(), TEST_F(), TEST_F(), TEST_F(), TEST_F(), TEST_F(), and TEST_F().

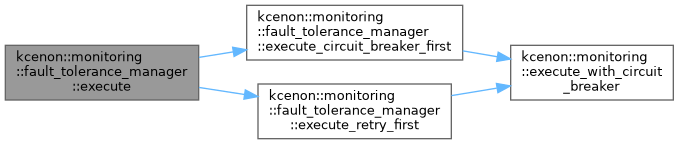

Here is the call graph for this function:

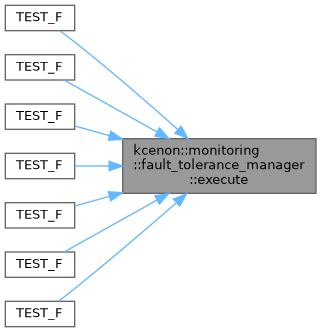

Here is the caller graph for this function:

◆ execute_circuit_breaker_first()

template<typename T >

template<typename Func >

common::Result< T > kcenon::monitoring::fault_tolerance_manager< T >::execute_circuit_breaker_first ( Func && func )

inlineprivate

Definition at line 229 of file fault_tolerance_manager.h.

                                                               {
        if (config_.enable_circuit_breaker && circuit_breaker_) {
            if (config_.enable_retry && retry_executor_) {
                return execute_with_circuit_breaker<T>(*circuit_breaker_, name_, [this, &func]() {
                    return retry_executor_->execute(func);
                });
            }
            return execute_with_circuit_breaker<T>(*circuit_breaker_, name_, std::forward<Func>(func));
        }
        if (config_.enable_retry && retry_executor_) {
            return retry_executor_->execute(std::forward<Func>(func));
        }
        return func();
    }

References kcenon::monitoring::fault_tolerance_manager< T >::circuit_breaker_, kcenon::monitoring::fault_tolerance_manager< T >::config_, kcenon::monitoring::fault_tolerance_config::enable_circuit_breaker, kcenon::monitoring::fault_tolerance_config::enable_retry, kcenon::monitoring::execute_with_circuit_breaker(), kcenon::monitoring::fault_tolerance_manager< T >::name_, and kcenon::monitoring::fault_tolerance_manager< T >::retry_executor_.

Referenced by kcenon::monitoring::fault_tolerance_manager< T >::execute(), and kcenon::monitoring::fault_tolerance_manager< T >::execute_internal().

Here is the call graph for this function:

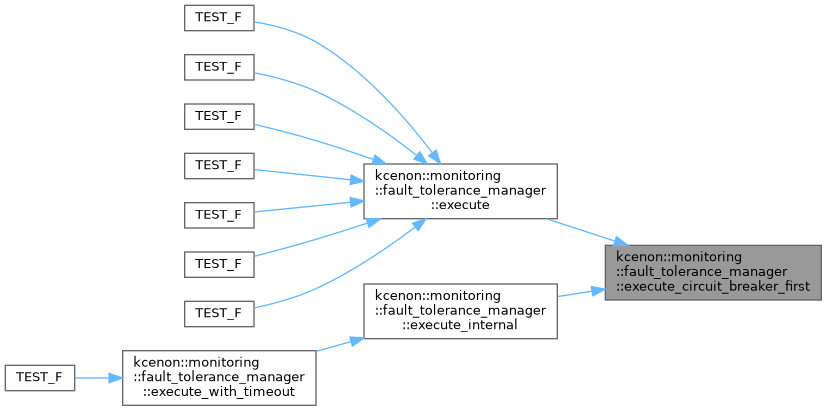

Here is the caller graph for this function:

◆ execute_internal()

template<typename T >

template<typename Func >

common::Result< T > kcenon::monitoring::fault_tolerance_manager< T >::execute_internal ( Func && func )

inlineprivate

Definition at line 221 of file fault_tolerance_manager.h.

                                                  {
        if (config_.circuit_breaker_first) {
            return execute_circuit_breaker_first(std::forward<Func>(func));
        }
        return execute_retry_first(std::forward<Func>(func));
    }

References kcenon::monitoring::fault_tolerance_config::circuit_breaker_first, kcenon::monitoring::fault_tolerance_manager< T >::config_, kcenon::monitoring::fault_tolerance_manager< T >::execute_circuit_breaker_first(), and kcenon::monitoring::fault_tolerance_manager< T >::execute_retry_first().

Referenced by kcenon::monitoring::fault_tolerance_manager< T >::execute_with_timeout().

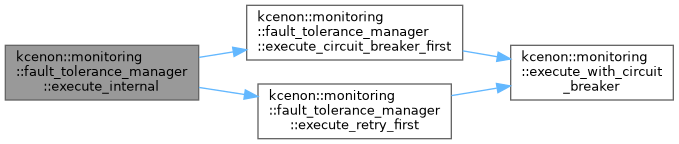

Here is the call graph for this function:

Here is the caller graph for this function:

◆ execute_retry_first()

template<typename T >

template<typename Func >

common::Result< T > kcenon::monitoring::fault_tolerance_manager< T >::execute_retry_first ( Func && func )

inlineprivate

Definition at line 245 of file fault_tolerance_manager.h.

                                                     {
        if (config_.enable_retry && retry_executor_) {
            if (config_.enable_circuit_breaker && circuit_breaker_) {
                return retry_executor_->execute([this, &func]() {
                    return execute_with_circuit_breaker<T>(*circuit_breaker_, name_, func);
                });
            }
            return retry_executor_->execute(std::forward<Func>(func));
        }
        if (config_.enable_circuit_breaker && circuit_breaker_) {
            return execute_with_circuit_breaker<T>(*circuit_breaker_, name_, std::forward<Func>(func));
        }
        return func();
    }

References kcenon::monitoring::fault_tolerance_manager< T >::circuit_breaker_, kcenon::monitoring::fault_tolerance_manager< T >::config_, kcenon::monitoring::fault_tolerance_config::enable_circuit_breaker, kcenon::monitoring::fault_tolerance_config::enable_retry, kcenon::monitoring::execute_with_circuit_breaker(), kcenon::monitoring::fault_tolerance_manager< T >::name_, and kcenon::monitoring::fault_tolerance_manager< T >::retry_executor_.

Referenced by kcenon::monitoring::fault_tolerance_manager< T >::execute(), and kcenon::monitoring::fault_tolerance_manager< T >::execute_internal().

Here is the call graph for this function:

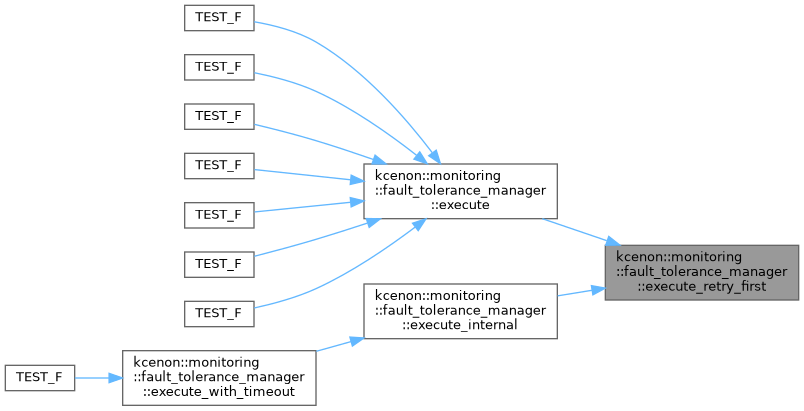

Here is the caller graph for this function:

◆ execute_with_timeout()

template<typename T >

template<typename Func >

common::Result< T > kcenon::monitoring::fault_tolerance_manager< T >::execute_with_timeout	(	Func &&	func,
		std::chrono::milliseconds	timeout )

inline

Execute a function with timeout.

Template Parameters

Func	The function type to execute (must return common::Result<T>)

Parameters

func	The function to execute
timeout	Maximum execution time

Returns: common::Result<T> containing success value or error

Definition at line 158 of file fault_tolerance_manager.h.

                                                                                     {
        metrics_.total_operations++;

        auto future_result = std::async(std::launch::async, [this, func = std::forward<Func>(func)]() mutable {
            return this->execute_internal(std::move(func));
        });

        if (future_result.wait_for(timeout) == std::future_status::timeout) {
            metrics_.timeouts++;
            metrics_.failed_operations++;
            return common::make_error<T>(static_cast<int>(monitoring_error_code::operation_timeout),
                               "Operation timed out after " + std::to_string(timeout.count()) + "ms");
        }

        auto op_result = future_result.get();
        if (op_result.is_ok()) {
            metrics_.successful_operations++;
        } else {
            metrics_.failed_operations++;
        }

        return op_result;
    }

References kcenon::monitoring::fault_tolerance_manager< T >::execute_internal(), kcenon::monitoring::fault_tolerance_metrics::failed_operations, kcenon::monitoring::fault_tolerance_manager< T >::metrics_, kcenon::monitoring::operation_timeout, kcenon::monitoring::fault_tolerance_metrics::successful_operations, kcenon::monitoring::fault_tolerance_metrics::timeouts, and kcenon::monitoring::fault_tolerance_metrics::total_operations.

Referenced by TEST_F().

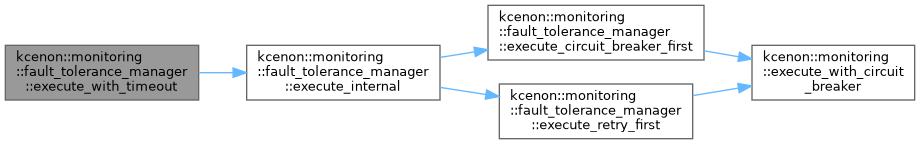

Here is the call graph for this function:

Here is the caller graph for this function:

◆ get_metrics()

template<typename T >

fault_tolerance_metrics kcenon::monitoring::fault_tolerance_manager< T >::get_metrics ( ) const

inline

Get fault tolerance metrics.

Definition at line 199 of file fault_tolerance_manager.h.

                                                {
        return metrics_;
    }

References kcenon::monitoring::fault_tolerance_manager< T >::metrics_.

Referenced by TEST_F().

Here is the caller graph for this function:

◆ get_name()

template<typename T >

const std::string & kcenon::monitoring::fault_tolerance_manager< T >::get_name ( ) const

inline

Get manager name.

Definition at line 206 of file fault_tolerance_manager.h.

                                      {
        return name_;
    }

References kcenon::monitoring::fault_tolerance_manager< T >::name_.

◆ initialize()

template<typename T >

void kcenon::monitoring::fault_tolerance_manager< T >::initialize ( )

inlineprivate

Definition at line 211 of file fault_tolerance_manager.h.

                      {
        if (config_.enable_circuit_breaker) {
            circuit_breaker_ = std::make_unique<circuit_breaker>(config_.circuit_config);
        }
        if (config_.enable_retry) {
            retry_executor_ = std::make_unique<retry_executor<T>>(name_ + "_retry", config_.retry_cfg);
        }
    }

Referenced by kcenon::monitoring::fault_tolerance_manager< T >::fault_tolerance_manager(), kcenon::monitoring::fault_tolerance_manager< T >::fault_tolerance_manager(), and kcenon::monitoring::fault_tolerance_manager< T >::fault_tolerance_manager().

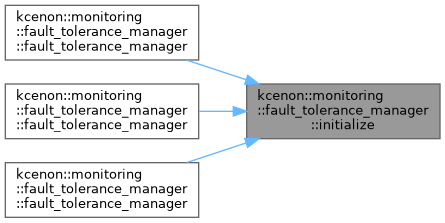

Here is the caller graph for this function:

◆ is_healthy()

template<typename T >

common::Result< bool > kcenon::monitoring::fault_tolerance_manager< T >::is_healthy ( )

inline

Check if fault tolerance manager is healthy.

Returns: common::Result<bool> indicating health status

Definition at line 186 of file fault_tolerance_manager.h.

                                    {
        if (config_.enable_circuit_breaker && circuit_breaker_) {
            auto state = circuit_breaker_->get_state();
            if (state == circuit_state::OPEN) {
                return common::ok(false);
            }
        }
        return common::ok(true);
    }

References kcenon::monitoring::fault_tolerance_manager< T >::circuit_breaker_, kcenon::monitoring::fault_tolerance_manager< T >::config_, and kcenon::monitoring::fault_tolerance_config::enable_circuit_breaker.

Referenced by TEST_F().

Here is the caller graph for this function:

Referenced by kcenon::monitoring::fault_tolerance_manager< T >::execute_circuit_breaker_first(), kcenon::monitoring::fault_tolerance_manager< T >::execute_retry_first(), and kcenon::monitoring::fault_tolerance_manager< T >::initialize().

The documentation for this class was generated from the following file:

include/kcenon/monitoring/reliability/fault_tolerance_manager.h
