Distributed tracer for managing spans and traces. More...

#include <distributed_tracer.h>

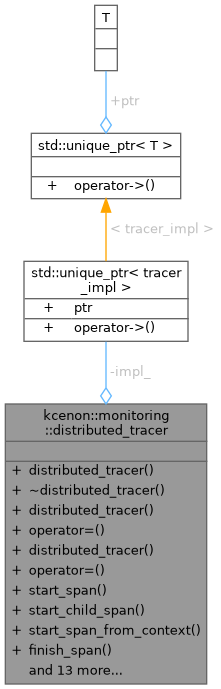

Collaboration diagram for kcenon::monitoring::distributed_tracer:

Public Member Functions
	distributed_tracer ()

	~distributed_tracer ()

	distributed_tracer (const distributed_tracer &)=delete

distributed_tracer &	operator= (const distributed_tracer &)=delete

	distributed_tracer (distributed_tracer &&) noexcept

distributed_tracer &	operator= (distributed_tracer &&) noexcept

common::Result< std::shared_ptr< trace_span > >	start_span (const std::string &operation_name, const std::string &service_name="monitoring_system")
	Start a new root span.

common::Result< std::shared_ptr< trace_span > >	start_child_span (const trace_span &parent, const std::string &operation_name)
	Start a child span.

common::Result< std::shared_ptr< trace_span > >	start_span_from_context (const trace_context &context, const std::string &operation_name)
	Start a span from trace context (for incoming requests)

common::Result< bool >	finish_span (std::shared_ptr< trace_span > span)
	Finish a span.

std::shared_ptr< trace_span >	get_current_span () const
	Get current active span for this thread.

void	set_current_span (std::shared_ptr< trace_span > span)
	Set current active span for this thread.

trace_context	extract_context (const trace_span &span) const
	Extract trace context for propagation.

template<typename Carrier >
void	inject_context (const trace_context &context, Carrier &carrier)
	Inject trace context into carrier (e.g., HTTP headers)

template<typename Carrier >
common::Result< trace_context >	extract_context_from_carrier (const Carrier &carrier)
	Extract trace context from carrier.

common::Result< std::vector< trace_span > >	get_trace (const std::string &trace_id) const
	Get all spans for a trace.

common::Result< bool >	export_spans (std::vector< trace_span > spans)
	Export spans to external system.

void	set_exporter (std::shared_ptr< trace_exporter_interface > exporter)
	Set the trace exporter for span export.

std::shared_ptr< trace_exporter_interface >	get_exporter () const
	Get the current trace exporter.

void	configure_export (const trace_export_settings &settings)
	Configure export settings.

trace_export_settings	get_export_settings () const
	Get current export settings.

common::VoidResult	flush ()
	Manually flush all pending spans to exporter.

std::unordered_map< std::string, std::size_t >	get_export_stats () const
	Get export statistics.

Private Attributes
std::unique_ptr< tracer_impl >	impl_

Detailed Description

Distributed tracer for managing spans and traces.

Examples: distributed_tracing_example.cpp.

Definition at line 195 of file distributed_tracer.h.

Constructor & Destructor Documentation

◆ distributed_tracer() [1/3]

kcenon::monitoring::distributed_tracer::distributed_tracer ( )

◆ ~distributed_tracer()

kcenon::monitoring::distributed_tracer::~distributed_tracer ( )

◆ distributed_tracer() [2/3]

kcenon::monitoring::distributed_tracer::distributed_tracer ( const distributed_tracer & )

delete

◆ distributed_tracer() [3/3]

kcenon::monitoring::distributed_tracer::distributed_tracer ( distributed_tracer && )

noexcept

Member Function Documentation

◆ configure_export()

void kcenon::monitoring::distributed_tracer::configure_export ( const trace_export_settings & settings )

Configure export settings.

Parameters

settings Export configuration settings

◆ export_spans()

common::Result< bool > kcenon::monitoring::distributed_tracer::export_spans ( std::vector< trace_span > spans )

Export spans to external system.

◆ extract_context()

trace_context kcenon::monitoring::distributed_tracer::extract_context ( const trace_span & span ) const

Extract trace context for propagation.

Examples: distributed_tracing_example.cpp.

Referenced by WebService::call_downstream_service(), and main().

Here is the caller graph for this function:

◆ extract_context_from_carrier()

template<typename Carrier >

common::Result< trace_context > kcenon::monitoring::distributed_tracer::extract_context_from_carrier ( const Carrier & carrier )

inline

Extract trace context from carrier.

Examples: distributed_tracing_example.cpp.

Definition at line 275 of file distributed_tracer.h.

                                                                                     {
        auto traceparent_it = carrier.find("traceparent");
        if (traceparent_it == carrier.end()) {
            return common::Result<trace_context>::err(error_info(kcenon::monitoring::monitoring_error_code::not_found,
                "Traceparent not found in carrier").to_common_error());
        }

        auto ctx_result = trace_context::from_w3c_traceparent(traceparent_it->second);
        if (ctx_result.is_err()) {
            return common::Result<trace_context>::err(ctx_result.error());
        }

        auto ctx = ctx_result.value();

        // Extract tracestate if present
        auto tracestate_it = carrier.find("tracestate");
        if (tracestate_it != carrier.end()) {
            ctx.trace_state = tracestate_it->second;
        }

        // Extract baggage
        for (const auto& [key, value] : carrier) {
            if (key.find("baggage-") == 0) {  // C++17 compatible
                ctx.baggage[key.substr(8)] = value;
            }
        }

        return ctx;
    }

References kcenon::monitoring::trace_context::from_w3c_traceparent(), and kcenon::monitoring::not_found.

Referenced by WebService::handle_request(), and main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ finish_span()

common::Result< bool > kcenon::monitoring::distributed_tracer::finish_span ( std::shared_ptr< trace_span > span )

Finish a span.

Examples: distributed_tracing_example.cpp.

Referenced by analyze_traces(), WebService::call_downstream_service(), WebService::handle_request(), main(), kcenon::monitoring::scoped_span::operator=(), WebService::process_business_logic(), WebService::query_database(), TEST_F(), TEST_F(), TEST_F(), and kcenon::monitoring::scoped_span::~scoped_span().

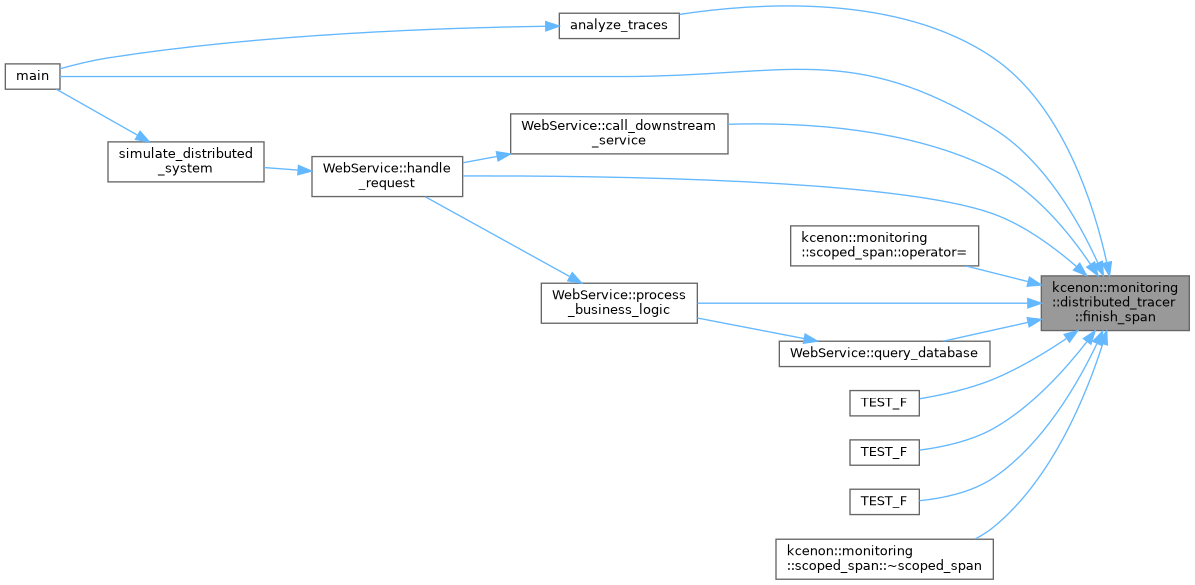

Here is the caller graph for this function:

◆ flush()

common::VoidResult kcenon::monitoring::distributed_tracer::flush ( )

Manually flush all pending spans to exporter.

Returns: Result indicating success or failure

◆ get_current_span()

std::shared_ptr< trace_span > kcenon::monitoring::distributed_tracer::get_current_span ( ) const

Get current active span for this thread.

Referenced by TEST_F().

Here is the caller graph for this function:

◆ get_export_settings()

trace_export_settings kcenon::monitoring::distributed_tracer::get_export_settings ( ) const

Get current export settings.

Returns: Current export settings

◆ get_export_stats()

std::unordered_map< std::string, std::size_t > kcenon::monitoring::distributed_tracer::get_export_stats ( ) const

Get export statistics.

Returns: Map of statistic name to value

◆ get_exporter()

std::shared_ptr< trace_exporter_interface > kcenon::monitoring::distributed_tracer::get_exporter ( ) const

Get the current trace exporter.

Returns: Shared pointer to current exporter, or nullptr if not set

◆ get_trace()

common::Result< std::vector< trace_span > > kcenon::monitoring::distributed_tracer::get_trace ( const std::string & trace_id ) const

Get all spans for a trace.

Examples: distributed_tracing_example.cpp.

Referenced by analyze_traces().

Here is the caller graph for this function:

◆ inject_context()

template<typename Carrier >

void kcenon::monitoring::distributed_tracer::inject_context	(	const trace_context &	context,
		Carrier &	carrier )

inline

Inject trace context into carrier (e.g., HTTP headers)

Examples: distributed_tracing_example.cpp.

Definition at line 260 of file distributed_tracer.h.

                                                                        {
        carrier["traceparent"] = context.to_w3c_traceparent();
        if (!context.trace_state.empty()) {
            carrier["tracestate"] = context.trace_state;
        }
        // Inject baggage
        for (const auto& [key, value] : context.baggage) {
            carrier["baggage-" + key] = value;
        }
    }

References kcenon::monitoring::trace_context::to_w3c_traceparent().

Referenced by WebService::call_downstream_service(), and main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ operator=() [1/2]

distributed_tracer & kcenon::monitoring::distributed_tracer::operator= ( const distributed_tracer & )

delete

◆ operator=() [2/2]

distributed_tracer & kcenon::monitoring::distributed_tracer::operator= ( distributed_tracer && )

noexcept

◆ set_current_span()

void kcenon::monitoring::distributed_tracer::set_current_span ( std::shared_ptr< trace_span > span )

Set current active span for this thread.

Referenced by kcenon::monitoring::scoped_span::scoped_span().

Here is the caller graph for this function:

◆ set_exporter()

void kcenon::monitoring::distributed_tracer::set_exporter ( std::shared_ptr< trace_exporter_interface > exporter )

Set the trace exporter for span export.

Parameters

exporter Shared pointer to trace exporter implementation

Referenced by ExporterIntegrationTest::TearDown().

Here is the caller graph for this function:

◆ start_child_span()

common::Result< std::shared_ptr< trace_span > > kcenon::monitoring::distributed_tracer::start_child_span	(	const trace_span &	parent,
		const std::string &	operation_name )

Start a child span.

Examples: distributed_tracing_example.cpp.

Referenced by analyze_traces(), WebService::call_downstream_service(), main(), WebService::process_business_logic(), WebService::query_database(), and TEST_F().

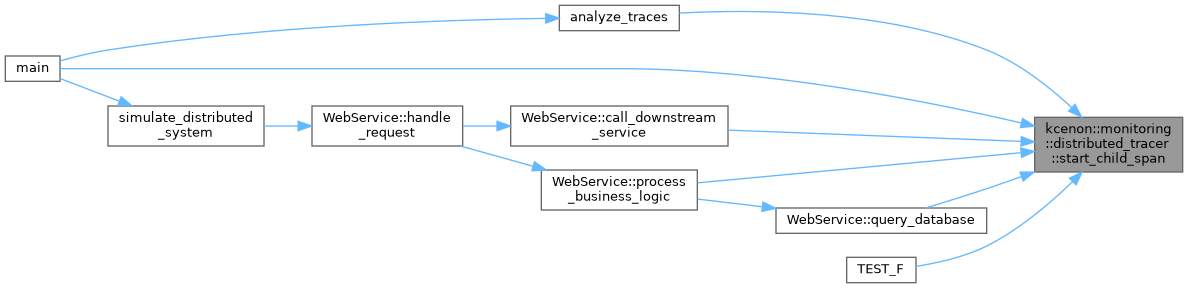

Here is the caller graph for this function:

◆ start_span()

common::Result< std::shared_ptr< trace_span > > kcenon::monitoring::distributed_tracer::start_span	(	const std::string &	operation_name,
		const std::string &	service_name = "monitoring_system" )

Start a new root span.

Examples: distributed_tracing_example.cpp.

Referenced by analyze_traces(), WebService::handle_request(), main(), TEST_F(), TEST_F(), and TEST_F().

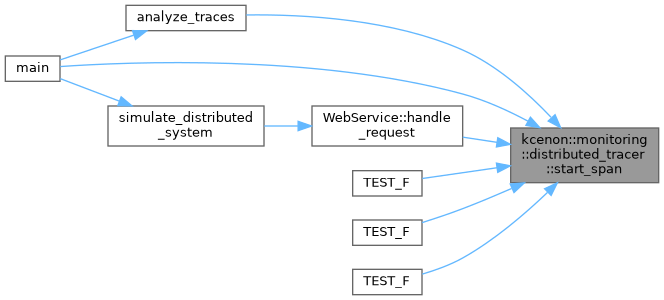

Here is the caller graph for this function:

◆ start_span_from_context()

common::Result< std::shared_ptr< trace_span > > kcenon::monitoring::distributed_tracer::start_span_from_context	(	const trace_context &	context,
		const std::string &	operation_name )

Start a span from trace context (for incoming requests)

Examples: distributed_tracing_example.cpp.

Referenced by WebService::handle_request(), and main().

Here is the caller graph for this function:

Member Data Documentation

◆ impl_

std::unique_ptr<tracer_impl> kcenon::monitoring::distributed_tracer::impl_

private

Definition at line 198 of file distributed_tracer.h.

The documentation for this class was generated from the following file:

include/kcenon/monitoring/tracing/distributed_tracer.h
