kcenon::monitoring::delta_trigger Class Reference

Trigger based on change from previous value. More...

#include <alert_triggers.h>

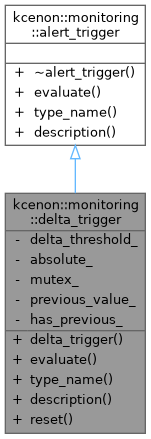

Inheritance diagram for kcenon::monitoring::delta_trigger:

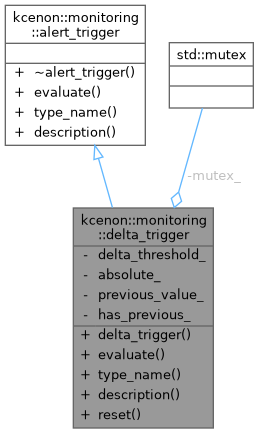

Collaboration diagram for kcenon::monitoring::delta_trigger:

Public Member Functions
	delta_trigger (double delta_threshold, bool absolute=true)
	Construct a delta trigger.
bool	evaluate (double value) const override
	Evaluate the trigger condition.
std::string	type_name () const override
	Get trigger type name.
std::string	description () const override
	Get human-readable description.
void	reset ()
	Reset previous value.
Public Member Functions inherited from kcenon::monitoring::alert_trigger
virtual	~alert_trigger ()=default

Private Attributes
double	delta_threshold_
bool	absolute_
std::mutex	mutex_
double	previous_value_ = 0.0
bool	has_previous_ = false

Detailed Description

Trigger based on change from previous value.

Fires when the difference between current and previous value exceeds a threshold.

Definition at line 710 of file alert_triggers.h.

Constructor & Destructor Documentation

delta_trigger()

kcenon::monitoring::delta_trigger::delta_trigger ( double delta_threshold, bool absolute = true )

inlineexplicit

Construct a delta trigger.

Parameters

delta_threshold	Minimum change to trigger
absolute	Use absolute difference (true) or signed (false)

Examples

/home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/alert/alert_triggers.h.

Definition at line 717 of file alert_triggers.h.

        : delta_threshold_(delta_threshold)
        , absolute_(absolute) {}

Member Function Documentation

description()

std::string kcenon::monitoring::delta_trigger::description ( ) const

inlineoverridevirtual

Get human-readable description.

Returns

Description string

Implements kcenon::monitoring::alert_trigger.

Examples

/home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/alert/alert_triggers.h.

Definition at line 743 of file alert_triggers.h.

                                           {
        if (absolute_) {
            return "|delta| > " + std::to_string(delta_threshold_);
        }
        return "delta > " + std::to_string(delta_threshold_);
    }

References absolute_, and delta_threshold_.

evaluate()

bool kcenon::monitoring::delta_trigger::evaluate ( double value ) const

inlineoverridevirtual

Evaluate the trigger condition.

Parameters

value

Current metric value

Returns

True if trigger condition is met

Implements kcenon::monitoring::alert_trigger.

Examples

/home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/alert/alert_triggers.h.

Definition at line 721 of file alert_triggers.h.

                                               {
        std::lock_guard<std::mutex> lock(mutex_);

        if (!has_previous_) {
            previous_value_ = value;
            has_previous_ = true;
            return false;
        }

        double delta = value - previous_value_;
        previous_value_ = value;

        if (absolute_) {
            return std::abs(delta) > delta_threshold_;
        }
        return delta > delta_threshold_;
    }

References absolute_, delta_threshold_, has_previous_, mutex_, and previous_value_.

reset()

void kcenon::monitoring::delta_trigger::reset ( )

inline

Reset previous value.

Examples

/home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/alert/alert_triggers.h.

Definition at line 753 of file alert_triggers.h.

                 {
        std::lock_guard<std::mutex> lock(mutex_);
        has_previous_ = false;
    }

References has_previous_, and mutex_.

type_name()

std::string kcenon::monitoring::delta_trigger::type_name ( ) const

inlineoverridevirtual

Get trigger type name.

Returns

Type name string

Implements kcenon::monitoring::alert_trigger.

Examples

/home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/alert/alert_triggers.h.

Definition at line 739 of file alert_triggers.h.

                                         {
        return "delta";
    }

Member Data Documentation

absolute_

bool kcenon::monitoring::delta_trigger::absolute_

private

Examples

/home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/alert/alert_triggers.h.

Definition at line 760 of file alert_triggers.h.

Referenced by description(), and evaluate().

delta_threshold_

double kcenon::monitoring::delta_trigger::delta_threshold_

private

Examples

/home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/alert/alert_triggers.h.

Definition at line 759 of file alert_triggers.h.

Referenced by description(), and evaluate().

has_previous_

bool kcenon::monitoring::delta_trigger::has_previous_ = false

mutableprivate

Examples

/home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/alert/alert_triggers.h.

Definition at line 763 of file alert_triggers.h.

Referenced by evaluate(), and reset().

mutex_

std::mutex kcenon::monitoring::delta_trigger::mutex_

mutableprivate

Examples

/home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/alert/alert_triggers.h.

Definition at line 761 of file alert_triggers.h.

Referenced by evaluate(), and reset().

previous_value_

double kcenon::monitoring::delta_trigger::previous_value_ = 0.0

mutableprivate

Examples

/home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/alert/alert_triggers.h.

Definition at line 762 of file alert_triggers.h.

Referenced by evaluate().

---

The documentation for this class was generated from the following file:

• include/kcenon/monitoring/alert/alert_triggers.h
