Defines conditions and behavior for alert triggering. More...

#include <alert_rule.h>

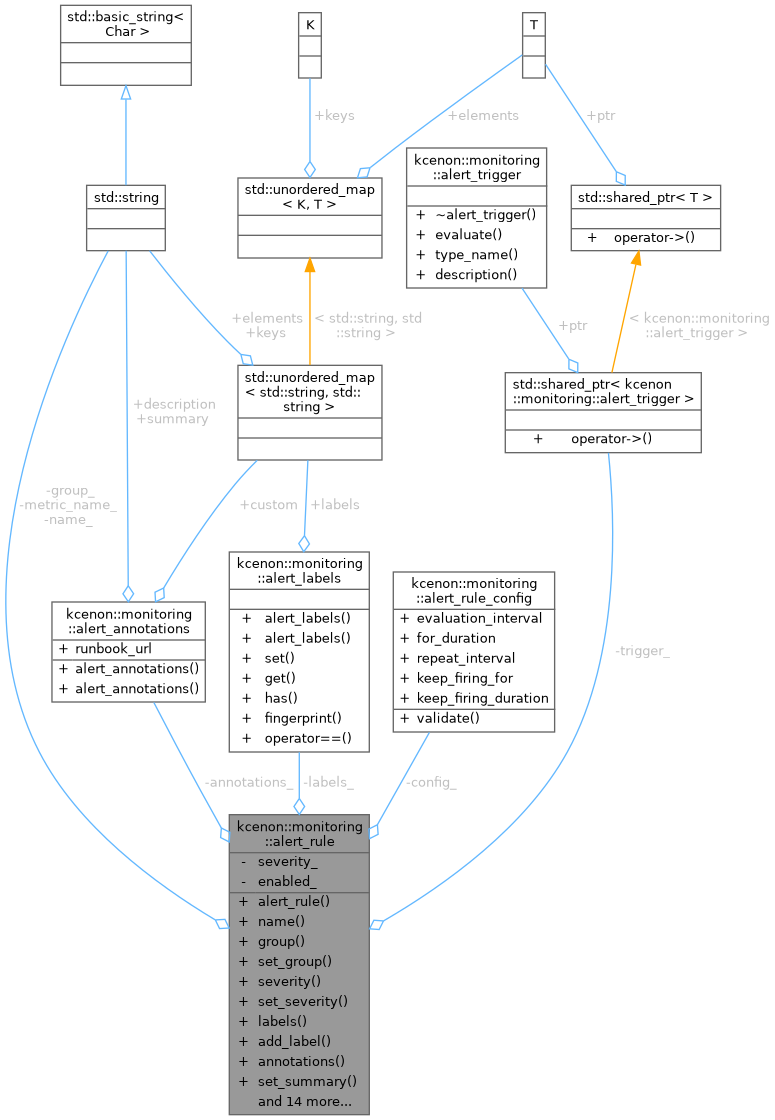

Collaboration diagram for kcenon::monitoring::alert_rule:

Public Member Functions
	alert_rule (std::string name)
	Construct an alert rule with a name.

const std::string &	name () const
	Get rule name.

const std::string &	group () const
	Get rule group.

alert_rule &	set_group (std::string group_name)
	Set rule group.

alert_severity	severity () const
	Get alert severity.

alert_rule &	set_severity (alert_severity sev)
	Set alert severity.

const alert_labels &	labels () const
	Get labels.

alert_rule &	add_label (const std::string &key, const std::string &value)
	Add a label.

const alert_annotations &	annotations () const
	Get annotations.

alert_rule &	set_summary (std::string summary)
	Set alert summary.

alert_rule &	set_description (std::string description)
	Set alert description.

alert_rule &	set_runbook_url (std::string url)
	Set runbook URL.

const alert_rule_config &	config () const
	Get configuration.

alert_rule &	set_evaluation_interval (std::chrono::milliseconds interval)
	Set evaluation interval.

alert_rule &	set_for_duration (std::chrono::milliseconds duration)
	Set for duration (pending time before firing)

alert_rule &	set_repeat_interval (std::chrono::milliseconds interval)
	Set notification repeat interval.

bool	is_enabled () const
	Check if rule is enabled.

alert_rule &	set_enabled (bool enabled)
	Enable or disable rule.

alert_rule &	set_trigger (std::shared_ptr< alert_trigger > trigger)
	Set the trigger for this rule.

std::shared_ptr< alert_trigger >	trigger () const
	Get the trigger.

alert	create_alert (double value) const
	Create an alert from this rule.

common::VoidResult	validate () const
	Validate rule configuration.

const std::string &	metric_name () const
	Get metric name to monitor.

alert_rule &	set_metric_name (std::string name)
	Set metric name to monitor.

Private Attributes
std::string	name_

std::string	group_

std::string	metric_name_

alert_severity	severity_ = alert_severity::warning

alert_labels	labels_

alert_annotations	annotations_

alert_rule_config	config_

bool	enabled_

std::shared_ptr< alert_trigger >	trigger_

Detailed Description

Defines conditions and behavior for alert triggering.

An alert rule encapsulates the logic for when alerts should be triggered, how they should be labeled and annotated, and where notifications should be routed.

Thread Safety:: This class is thread-safe for read operations after construction. Trigger evaluation may require external synchronization depending on trigger implementation.

Examples: alert_triggers_example.cpp.

Definition at line 82 of file alert_rule.h.

Constructor & Destructor Documentation

◆ alert_rule()

kcenon::monitoring::alert_rule::alert_rule ( std::string name )

inlineexplicit

Construct an alert rule with a name.

Parameters

name	Unique rule name

Examples: /home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/alert/alert_rule.h.

Definition at line 88 of file alert_rule.h.

89 : name_(std::move(name))

90 , enabled_(true) {}

kcenon::monitoring::alert_rule::name

const std::string & name() const

Get rule name.

Definition alert_rule.h:96

kcenon::monitoring::alert_rule::name_

std::string name_

Definition alert_rule.h:306

kcenon::monitoring::alert_rule::enabled_

bool enabled_

Definition alert_rule.h:313

Member Function Documentation

◆ add_label()

alert_rule & kcenon::monitoring::alert_rule::add_label	(	const std::string &	key,
		const std::string &	value )

inline

Add a label.

Parameters

key	Label key
value	Label value

Returns: Reference to this for chaining

Examples: /home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/alert/alert_rule.h.

Definition at line 142 of file alert_rule.h.

                                                                        {
        labels_.set(key, value);
        return *this;
    }

References labels_, and kcenon::monitoring::alert_labels::set().

Referenced by main(), TEST(), and TEST().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ annotations()

const alert_annotations & kcenon::monitoring::alert_rule::annotations ( ) const

inline

Get annotations.

Returns: Alert annotations

Examples: /home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/alert/alert_rule.h.

Definition at line 151 of file alert_rule.h.

151{ return annotations_; }

kcenon::monitoring::alert_rule::annotations_

alert_annotations annotations_

Definition alert_rule.h:311

References annotations_.

Referenced by TEST().

Here is the caller graph for this function:

◆ config()

const alert_rule_config & kcenon::monitoring::alert_rule::config ( ) const

inline

Get configuration.

Returns: Rule configuration

Examples: /home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/alert/alert_rule.h.

Definition at line 187 of file alert_rule.h.

187{ return config_; }

kcenon::monitoring::alert_rule::config_

alert_rule_config config_

Definition alert_rule.h:312

References config_.

◆ create_alert()

alert kcenon::monitoring::alert_rule::create_alert ( double value ) const

inline

Create an alert from this rule.

Parameters

value Current metric value

Returns: Created alert

Examples: /home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/alert/alert_rule.h.

Definition at line 256 of file alert_rule.h.

                                           {
        alert a(name_, labels_);
        a.annotations = annotations_;
        a.severity = severity_;
        a.value = value;
        a.rule_name = name_;
        a.group_key = group_.empty() ? name_ : group_;
        return a;
    }

References kcenon::monitoring::alert::annotations, annotations_, group_, kcenon::monitoring::alert::group_key, labels_, name_, kcenon::monitoring::alert::rule_name, kcenon::monitoring::alert::severity, severity_, and kcenon::monitoring::alert::value.

Referenced by TEST(), and TEST().

Here is the caller graph for this function:

◆ group()

const std::string & kcenon::monitoring::alert_rule::group ( ) const

inline

Get rule group.

Returns: Rule group name

Examples: /home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/alert/alert_rule.h.

Definition at line 102 of file alert_rule.h.

102{ return group_; }

References group_.

Referenced by TEST().

Here is the caller graph for this function:

◆ is_enabled()

bool kcenon::monitoring::alert_rule::is_enabled ( ) const

inline

Check if rule is enabled.

Returns: True if enabled

Examples: /home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/alert/alert_rule.h.

Definition at line 223 of file alert_rule.h.

223{ return enabled_; }

References enabled_.

Referenced by TEST(), and TEST().

Here is the caller graph for this function:

◆ labels()

const alert_labels & kcenon::monitoring::alert_rule::labels ( ) const

inline

Get labels.

Returns: Alert labels

Examples: /home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/alert/alert_rule.h.

Definition at line 134 of file alert_rule.h.

134{ return labels_; }

References labels_.

Referenced by TEST().

Here is the caller graph for this function:

◆ metric_name()

const std::string & kcenon::monitoring::alert_rule::metric_name ( ) const

inline

Get metric name to monitor.

Returns: Metric name

Examples: /home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/alert/alert_rule.h.

Definition at line 293 of file alert_rule.h.

293{ return metric_name_; }

kcenon::monitoring::alert_rule::metric_name_

std::string metric_name_

Definition alert_rule.h:308

References metric_name_.

Referenced by TEST().

Here is the caller graph for this function:

◆ name()

const std::string & kcenon::monitoring::alert_rule::name ( ) const

inline

Get rule name.

Returns: Rule name

Examples: /home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/alert/alert_rule.h.

Definition at line 96 of file alert_rule.h.

96{ return name_; }

References name_.

Referenced by main(), set_metric_name(), and TEST().

Here is the caller graph for this function:

◆ set_description()

alert_rule & kcenon::monitoring::alert_rule::set_description ( std::string description )

inline

Set alert description.

Parameters

description Description text

Returns: Reference to this for chaining

Examples: /home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/alert/alert_rule.h.

Definition at line 168 of file alert_rule.h.

                                                       {
        annotations_.description = std::move(description);
        return *this;
    }

References annotations_, and kcenon::monitoring::alert_annotations::description.

Referenced by main(), and TEST().

Here is the caller graph for this function:

◆ set_enabled()

alert_rule & kcenon::monitoring::alert_rule::set_enabled ( bool enabled )

inline

Enable or disable rule.

Parameters

enabled Enable state

Returns: Reference to this for chaining

Examples: /home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/alert/alert_rule.h.

Definition at line 230 of file alert_rule.h.

                                          {
        enabled_ = enabled;
        return *this;
    }

References enabled_.

Referenced by TEST(), and TEST().

Here is the caller graph for this function:

◆ set_evaluation_interval()

alert_rule & kcenon::monitoring::alert_rule::set_evaluation_interval ( std::chrono::milliseconds interval )

inline

Set evaluation interval.

Parameters

interval Evaluation interval

Returns: Reference to this for chaining

Examples: /home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/alert/alert_rule.h.

Definition at line 194 of file alert_rule.h.

                                                                        {
        config_.evaluation_interval = interval;
        return *this;
    }

References config_, and kcenon::monitoring::alert_rule_config::evaluation_interval.

Referenced by TEST(), and TEST().

Here is the caller graph for this function:

◆ set_for_duration()

alert_rule & kcenon::monitoring::alert_rule::set_for_duration ( std::chrono::milliseconds duration )

inline

Set for duration (pending time before firing)

Parameters

duration Duration before firing

Returns: Reference to this for chaining

Examples: /home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/alert/alert_rule.h.

Definition at line 204 of file alert_rule.h.

                                                                 {
        config_.for_duration = duration;
        return *this;
    }

References config_, and kcenon::monitoring::alert_rule_config::for_duration.

Referenced by TEST().

Here is the caller graph for this function:

◆ set_group()

alert_rule & kcenon::monitoring::alert_rule::set_group ( std::string group_name )

inline

Set rule group.

Parameters

group_name Group name

Returns: Reference to this for chaining

Examples: /home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/alert/alert_rule.h.

Definition at line 109 of file alert_rule.h.

                                                {
        group_ = std::move(group_name);
        return *this;
    }

References group_.

Referenced by TEST(), and TEST().

Here is the caller graph for this function:

◆ set_metric_name()

alert_rule & kcenon::monitoring::alert_rule::set_metric_name ( std::string name )

inline

Set metric name to monitor.

Parameters

name	Metric name

Returns: Reference to this for chaining

Examples: /home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/alert/alert_rule.h.

Definition at line 300 of file alert_rule.h.

                                                {
        metric_name_ = std::move(name);
        return *this;
    }

References metric_name_, and name().

Referenced by main(), TEST(), and TEST().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ set_repeat_interval()

alert_rule & kcenon::monitoring::alert_rule::set_repeat_interval ( std::chrono::milliseconds interval )

inline

Set notification repeat interval.

Parameters

interval Repeat interval

Returns: Reference to this for chaining

Examples: /home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/alert/alert_rule.h.

Definition at line 214 of file alert_rule.h.

                                                                    {
        config_.repeat_interval = interval;
        return *this;
    }

References config_, and kcenon::monitoring::alert_rule_config::repeat_interval.

Referenced by TEST().

Here is the caller graph for this function:

◆ set_runbook_url()

alert_rule & kcenon::monitoring::alert_rule::set_runbook_url ( std::string url )

inline

Set runbook URL.

Parameters

url	Runbook URL

Returns: Reference to this for chaining

Examples: /home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/alert/alert_rule.h.

Definition at line 178 of file alert_rule.h.

                                               {
        annotations_.runbook_url = std::move(url);
        return *this;
    }

References annotations_, and kcenon::monitoring::alert_annotations::runbook_url.

Referenced by TEST().

Here is the caller graph for this function:

◆ set_severity()

alert_rule & kcenon::monitoring::alert_rule::set_severity ( alert_severity sev )

inline

Set alert severity.

Parameters

sev	Severity level

Returns: Reference to this for chaining

Examples: /home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/alert/alert_rule.h.

Definition at line 125 of file alert_rule.h.

                                                 {
        severity_ = sev;
        return *this;
    }

References severity_.

Referenced by main(), TEST(), and TEST().

Here is the caller graph for this function:

◆ set_summary()

alert_rule & kcenon::monitoring::alert_rule::set_summary ( std::string summary )

inline

Set alert summary.

Parameters

summary Summary text

Returns: Reference to this for chaining

Examples: /home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/alert/alert_rule.h.

Definition at line 158 of file alert_rule.h.

                                               {
        annotations_.summary = std::move(summary);
        return *this;
    }

References annotations_, kcenon::monitoring::alert_annotations::summary, and kcenon::monitoring::summary.

Referenced by main(), TEST(), and TEST().

Here is the caller graph for this function:

◆ set_trigger()

alert_rule & kcenon::monitoring::alert_rule::set_trigger ( std::shared_ptr< alert_trigger > trigger )

inline

Set the trigger for this rule.

Parameters

trigger Trigger implementation

Returns: Reference to this for chaining

Examples: /home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/alert/alert_rule.h.

Definition at line 240 of file alert_rule.h.

                                                                  {
        trigger_ = std::move(trigger);
        return *this;
    }

References trigger(), and trigger_.

Referenced by main(), TEST(), TEST(), TEST(), TEST(), TEST(), and TEST().

Here is the call graph for this function:

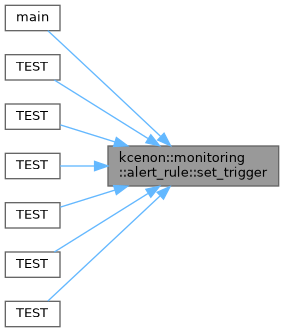

Here is the caller graph for this function:

◆ severity()

alert_severity kcenon::monitoring::alert_rule::severity ( ) const

inline

Get alert severity.

Returns: Severity level

Examples: /home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/alert/alert_rule.h.

Definition at line 118 of file alert_rule.h.

118{ return severity_; }

References severity_.

Referenced by TEST(), and TEST().

Here is the caller graph for this function:

◆ trigger()

std::shared_ptr< alert_trigger > kcenon::monitoring::alert_rule::trigger ( ) const

inline

Get the trigger.

Returns: Trigger implementation

Examples: /home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/alert/alert_rule.h.

Definition at line 249 of file alert_rule.h.

249{ return trigger_; }

References trigger_.

Referenced by main(), set_trigger(), and TEST().

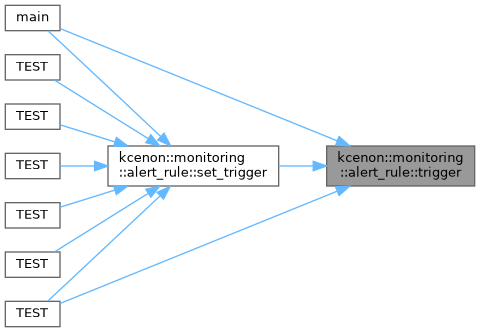

Here is the caller graph for this function:

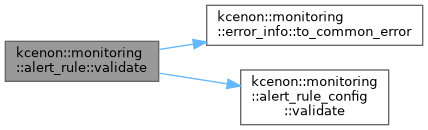

◆ validate()

common::VoidResult kcenon::monitoring::alert_rule::validate ( ) const

inline

Validate rule configuration.

Returns: Result indicating if configuration is valid

Examples: /home/runner/work/monitoring_system/monitoring_system/include/kcenon/monitoring/alert/alert_rule.h.

Definition at line 270 of file alert_rule.h.

                                      {
        if (name_.empty()) {
            error_info err(monitoring_error_code::invalid_argument,
                          "Rule name cannot be empty");
            return common::VoidResult::err(err.to_common_error());
        }
        if (!config_.validate()) {
            error_info err(monitoring_error_code::invalid_configuration,
                          "Rule configuration is invalid");
            return common::VoidResult::err(err.to_common_error());
        }
        if (!trigger_) {
            error_info err(monitoring_error_code::invalid_argument,
                          "Rule must have a trigger");
            return common::VoidResult::err(err.to_common_error());
        }
        return common::ok();
    }
