Example collector plugin that generates dummy metrics. More...

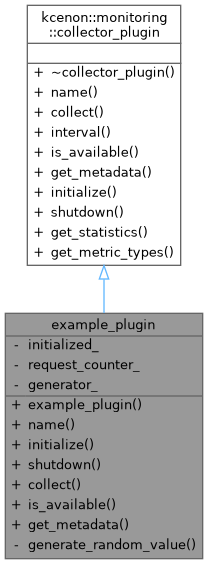

Inheritance diagram for example_plugin:

Collaboration diagram for example_plugin:

Public Member Functions
	example_plugin ()

auto	name () const -> std::string_view override
	Get the unique name of this plugin.

auto	initialize (const config_map &config) -> bool override
	Initialize plugin with configuration.

auto	shutdown () -> void override
	Shutdown plugin and release resources.

auto	collect () -> std::vector< metric_data > override
	Collect current metrics from this plugin.

auto	is_available () const -> bool override
	Check if this plugin is available on the current system.

auto	get_metadata () const -> plugin_metadata_t override
	Get plugin metadata.

Public Member Functions inherited from kcenon::monitoring::collector_plugin
virtual	~collector_plugin ()=default

virtual auto	interval () const -> std::chrono::milliseconds=0
	Get the collection interval for this plugin.

virtual auto	get_statistics () const -> stats_map
	Get plugin statistics.

virtual auto	get_metric_types () const -> std::vector< std::string >=0
	Get supported metric types.

Private Member Functions
auto	generate_random_value (double min, double max) -> double

Private Attributes
bool	initialized_ {false}

uint64_t	request_counter_ {0}

std::mt19937	generator_

Detailed Description

Example collector plugin that generates dummy metrics.

Examples: plugin_example/example_plugin.cpp.

Definition at line 34 of file example_plugin.cpp.

Constructor & Destructor Documentation

◆ example_plugin()

example_plugin::example_plugin ( )

inline

Examples: plugin_example/example_plugin.cpp.

Definition at line 36 of file example_plugin.cpp.

36: generator_(std::random_device{}()) {}

example_plugin::generator_

std::mt19937 generator_

Definition example_plugin.cpp:113

Member Function Documentation

◆ collect()

auto example_plugin::collect ( ) -> std::vector< metric_data >

inlineoverridevirtual

Collect current metrics from this plugin.

Returns: Vector of collected metrics

This method is called periodically based on interval(). Implementations should:

Return quickly (< 100ms recommended)
Handle errors gracefully (return empty vector on failure)
Be thread-safe if concurrent collection is enabled
Avoid blocking I/O when possible

Implements kcenon::monitoring::collector_plugin.

Examples: plugin_example/example_plugin.cpp.

Definition at line 52 of file example_plugin.cpp.

                                                      {
        std::vector<metric_data> metrics;

        if (!initialized_) {
            return metrics;
        }

        // Generate some dummy metrics
        metric_data cpu_metric;
        cpu_metric.name = "example.cpu_usage";
        cpu_metric.value = generate_random_value(0.0, 100.0);
        cpu_metric.unit = "%";
        cpu_metric.timestamp = std::chrono::system_clock::now();
        cpu_metric.labels["plugin"] = "example";
        cpu_metric.labels["type"] = "cpu";
        metrics.push_back(cpu_metric);

        metric_data memory_metric;
        memory_metric.name = "example.memory_usage";
        memory_metric.value = generate_random_value(0.0, 1024.0);
        memory_metric.unit = "MB";
        memory_metric.timestamp = std::chrono::system_clock::now();
        memory_metric.labels["plugin"] = "example";
        memory_metric.labels["type"] = "memory";
        metrics.push_back(memory_metric);

        metric_data counter_metric;
        counter_metric.name = "example.request_count";
        counter_metric.value = static_cast<double>(++request_counter_);
        counter_metric.unit = "requests";
        counter_metric.timestamp = std::chrono::system_clock::now();
        counter_metric.labels["plugin"] = "example";
        counter_metric.labels["type"] = "counter";
        metrics.push_back(counter_metric);

        return metrics;
    }

References generate_random_value(), initialized_, and request_counter_.

Here is the call graph for this function:

◆ generate_random_value()

auto example_plugin::generate_random_value	(	double	min,
		double	max ) -> double

inlineprivate

Examples: plugin_example/example_plugin.cpp.

Definition at line 106 of file example_plugin.cpp.

                                                                 {
        std::uniform_real_distribution<double> dist(min, max);
        return dist(generator_);
    }

References generator_.

Referenced by collect().

Here is the caller graph for this function:

◆ get_metadata()

auto example_plugin::get_metadata ( ) const -> plugin_metadata_t

inlineoverridevirtual

Get plugin metadata.

Returns: Metadata describing this plugin

Default implementation returns minimal metadata. Override to provide rich plugin information.

Reimplemented from kcenon::monitoring::collector_plugin.

Examples: plugin_example/example_plugin.cpp.

Definition at line 95 of file example_plugin.cpp.

                                                            {
        return plugin_metadata_t{
            plugin_category::custom,
            plugin_type::collector,
            "Example Plugin",
            "1.0.0",
            "Demonstrates dynamic plugin loading"
        };
    }

◆ initialize()

auto example_plugin::initialize ( const config_map & ) -> bool

inlineoverridevirtual

Initialize plugin with configuration.

Parameters

config Configuration key-value pairs

Returns: True if initialization succeeded

Called once after plugin registration. Optional: Default implementation always succeeds.

Reimplemented from kcenon::monitoring::collector_plugin.

Examples: plugin_example/example_plugin.cpp.

Definition at line 42 of file example_plugin.cpp.

                                                               {
        (void)config;  // Unused
        initialized_ = true;
        return true;
    }

References initialized_.

◆ is_available()

auto example_plugin::is_available ( ) const -> bool

inlineoverridevirtual

Check if this plugin is available on the current system.

Returns: True if plugin can collect metrics, false otherwise

Availability checks may include:

Platform compatibility (Linux-only, Windows-only)
Hardware presence (GPU, sensors)
Permission checks (root required)
Resource availability (proc filesystem, WMI)

The registry may skip unavailable plugins during registration.

Implements kcenon::monitoring::collector_plugin.

Examples: plugin_example/example_plugin.cpp.

Definition at line 90 of file example_plugin.cpp.

                                               {
        // This plugin is available on all platforms
        return true;
    }

◆ name()

auto example_plugin::name ( ) const -> std::string_view

inlineoverridevirtual

Get the unique name of this plugin.

Returns: Plugin name (must be unique within registry)

The name is used for:

Plugin lookup and discovery
Configuration mapping
Metric tagging (added as "collector" tag)

Implements kcenon::monitoring::collector_plugin.

Examples: plugin_example/example_plugin.cpp.

Definition at line 38 of file example_plugin.cpp.

                                                 {
        return "example_plugin";
    }

◆ shutdown()

auto example_plugin::shutdown ( ) -> void

inlineoverridevirtual

Shutdown plugin and release resources.

Called before plugin destruction. Optional: Default implementation is no-op.

Reimplemented from kcenon::monitoring::collector_plugin.

Examples: plugin_example/example_plugin.cpp.

Definition at line 48 of file example_plugin.cpp.

                                     {
        initialized_ = false;
    }

References initialized_.

Member Data Documentation

◆ generator_

std::mt19937 example_plugin::generator_

private

Examples: plugin_example/example_plugin.cpp.

Definition at line 113 of file example_plugin.cpp.

Referenced by generate_random_value().

◆ initialized_

bool example_plugin::initialized_ {false}

private

Examples: plugin_example/example_plugin.cpp.

Definition at line 111 of file example_plugin.cpp.

111{false};

Referenced by collect(), initialize(), and shutdown().

◆ request_counter_

uint64_t example_plugin::request_counter_ {0}

private

Examples: plugin_example/example_plugin.cpp.

Definition at line 112 of file example_plugin.cpp.

112{0};

Referenced by collect().

The documentation for this class was generated from the following file:

examples/plugin_example/example_plugin.cpp
