System Overview

Logger System is a high-performance C++20 thread-safe logging framework with asynchronous capabilities. It provides a modular, interface-driven architecture with pluggable components via the Decorator pattern, targeting 4M+ messages per second throughput with sub-microsecond latency.

The framework offers 17+ writer implementations, structured logging, OpenTelemetry integration, encrypted logging, and flexible decorator-based composition through a fluent builder API.

Key Features

Category	Feature	Description
Writers	Console Writer	Thread-safe colored console output
Writers	File Writer	Basic file logging with path validation
Writers	Rotating File Writer	Size-based file rotation with retention
Writers	Network Writer	Remote log shipping over TCP/UDP
Writers	OTLP Writer	OpenTelemetry Protocol export (HTTP/gRPC)
Decorators	Async Writer	Lock-free queue with configurable depth (default 10000)
Decorators	Buffered Writer	Memory-buffered writes with flush policies
Decorators	Batch Writer	Batched writes for throughput optimization
Decorators	Encrypted Writer	AES-256 encryption via OpenSSL
Decorators	Filtered Writer	Level and pattern-based log filtering
Decorators	Formatted Writer	Pluggable log message formatting
Decorators	Thread-Safe Writer	Mutex-guarded writer wrapper
Decorators	Critical Writer	Guaranteed delivery for critical logs
Composition	Composite Writer	Fan-out to multiple writer targets
Builder	Writer Builder	Fluent API for decorator chain composition
Builder	Logger Config Builder	Configuration-driven logger construction
Structured	Structured Log Builder	Key-value structured logging with context
Security	Secure Key Storage	Protected key management for encrypted logging
Backends	Standalone Backend	std::jthread-based async I/O (default)
Backends	Integration Backend	thread_system pool integration (optional)
Backends	Monitoring Backend	Metrics-aware backend with monitoring hooks

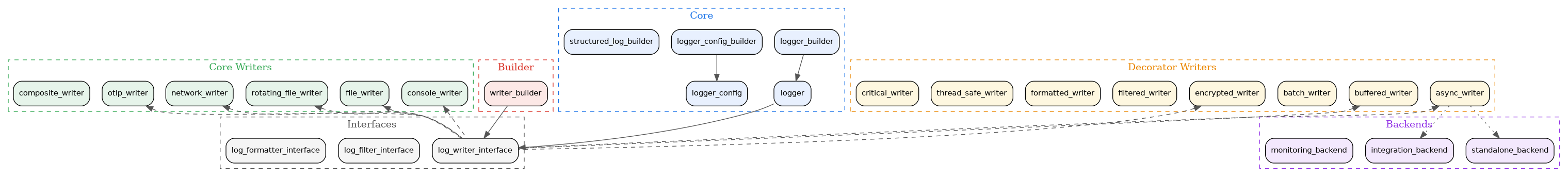

Architecture Diagram

The framework is organized into layers. Writers are composed using the Decorator pattern, with the Writer Builder providing a fluent API for chain construction.

Learning Resources

New to logger_system? Start with these guided pages, written for external developers integrating the framework for the first time:

Resource	Audience	Description
Tutorial: Basic Logging	Newcomers	Console + file writers, log levels, structured logging. Three runnable snippets.
Tutorial: Decorator Composition	Intermediate	Decorator pattern, ordering rules, custom decorators. Three composition recipes.
Tutorial: Production Configuration	Advanced	High-throughput, async, rotation, OpenTelemetry export. Three production scenarios.
Frequently Asked Questions	Reference	Ten of the most common configuration questions, with concise answers.
Troubleshooting Guide	Operations	Lost messages, file permissions, queue overflow, performance degradation, decorator pitfalls.

The Examples examples directory contains 16 runnable programs that correspond one-to-one with the tutorials.

Quick Start

A minimal example using the logger builder with console and file writers:

#include <kcenon/logger/core/logger_builder.h>
#include <kcenon/logger/writers/console_writer.h>
#include <kcenon/logger/writers/file_writer.h>
#include <kcenon/logger/builders/writer_builder.h>

using namespace kcenon::logger;

int main() {
    // Build a console writer with async decorator
    auto console = writer_builder()
        .console()
        .with_async()
        .build();

    // Build a file writer with rotation and encryption
    auto file = writer_builder()
        .rotating_file("app.log", 10 * 1024 * 1024)  // 10 MB rotation
        .with_buffered(4096)
        .with_async()
        .build();

    // Construct the logger
    auto logger = logger_builder()
        .add_writer(std::move(console))
        .add_writer(std::move(file))
        .build();

    logger->info("Application started");
    logger->error("Something went wrong: {}", error_msg);

    return 0;
}

Installation

CMake FetchContent (Recommended)

include(FetchContent)
FetchContent_Declare(
    logger_system
    GIT_REPOSITORY https://github.com/kcenon/logger_system.git
    GIT_TAG        main
)
FetchContent_MakeAvailable(logger_system)

target_link_libraries(your_target PRIVATE kcenon::logger)

vcpkg

vcpkg install kcenon-logger-system

find_package(logger_system CONFIG REQUIRED)

target_link_libraries(your_target PRIVATE kcenon::logger)

Module Overview

Module	Directory	Key Headers	Description
Core	`core/`	logger.h, logger_builder.h, logger_config.h	Logger, builder, and configuration
Interfaces	`interfaces/`	log_writer_interface.h, log_filter_interface.h	Core abstractions for writers, filters, formatters
Writers	`writers/`	console_writer.h, file_writer.h, rotating_file_writer.h	17 writer implementations (core + decorators)
Builders	`builders/`	writer_builder.h	Fluent API for decorator chain composition
Backends	`backends/`	standalone_backend.h, integration_backend.h	Async I/O backends (standalone or thread_system)
Formatters	`formatters/`	(formatter implementations)	Log message formatting
Filters	`filters/`	(filter implementations)	Level and pattern-based filtering
Security	`security/`	secure_key_storage.h	AES-256 key management and audit logging
OTLP	`otlp/`	otlp_context.h	OpenTelemetry context and export support
Structured	`structured/`	structured_log_builder.h	Key-value structured logging
Adapters	`adapters/`	common_logger_adapter.h	Adapter for common_system ILogger interface

Examples

Example	Source	Description
Basic Usage	basic_usage.cpp	Simple logger setup with console and file writers
Logger Config Builder	logger_config_builder_example.cpp	Configuration-driven logger construction
Decorator Usage	decorator_usage.cpp	Manual decorator pattern composition
Writer Builder	writer_builder_example.cpp	Fluent builder API for writer chains
Composite Writer	composite_writer_example.cpp	Fan-out logging to multiple targets
Distributed Logging	distributed_logging_demo.cpp	Network-based distributed log collection
Structured Logging	structured_logging_example.cpp	Key-value structured log entries
Security Demo	security_demo.cpp	Encrypted logging with secure key storage
Critical Logging	critical_logging_example.cpp	Guaranteed delivery for critical log messages
Custom Writer	custom_writer_example.cpp	Implementing a custom log writer
Adapter Pattern	adapter_pattern_poc.cpp	Adapting logger to common_system ILogger
DI Pattern	di_pattern_example.cpp	Dependency injection with logger
Monitoring Integration	monitoring_integration_example.cpp	Metrics and monitoring hooks
Advanced Features	advanced_features_demo.cpp	Advanced configuration and usage patterns
Metrics Demo	metrics_demo.cpp	Logger metrics collection and reporting

Related Systems

Logger System is Tier 2 in the kcenon ecosystem, depending on common_system (required) and thread_system (optional).

System	Tier	Relationship	Repository
common_system	0	Required dependency (ILogger, Result<T>)	https://github.com/kcenon/common_system
thread_system	1	Optional dependency (thread pool for async I/O)	https://github.com/kcenon/thread_system
monitoring_system	3	Consumer (uses logger for event logging)	https://github.com/kcenon/monitoring_system
network_system	4	Consumer (uses logger for network diagnostics)	https://github.com/kcenon/network_system
