database::protocol::message_header Struct Reference

Common header for all protocol messages. More...

#include <database_protocol.h>

Collaboration diagram for database::protocol::message_header:

Public Member Functions
bool	is_valid () const
	Validate message header.

Public Attributes
uint32_t	magic = MAGIC
uint16_t	version = PROTOCOL_VERSION
message_type	type
uint64_t	request_id
uint32_t	payload_size

Static Public Attributes
static constexpr uint32_t	MAGIC = 0xDB01DB01
static constexpr uint16_t	PROTOCOL_VERSION = 1

Detailed Description

Common header for all protocol messages.

Binary layout (12 bytes):

• magic: 4 bytes (0xDB01DB01)
• version: 2 bytes (1)
• type: 2 bytes
• request_id: 8 bytes
• payload_size: 4 bytes

Definition at line 78 of file database_protocol.h.

Member Function Documentation

is_valid()

bool database::protocol::message_header::is_valid ( ) const

inlinenodiscard

Validate message header.

Returns

true if valid, false otherwise

Definition at line 92 of file database_protocol.h.

                                        {
        return magic == MAGIC && version == PROTOCOL_VERSION;
    }

References MAGIC, magic, PROTOCOL_VERSION, and version.

Referenced by database::protocol::protocol_serializer::deserialize_header(), TEST_F(), TEST_F(), and TEST_F().

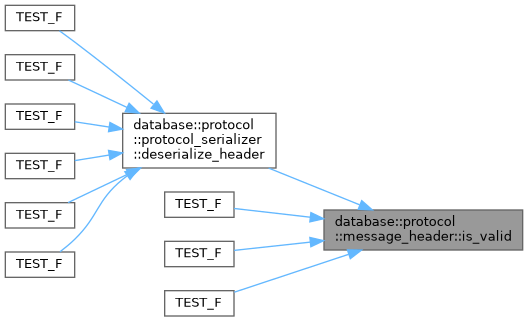

Here is the caller graph for this function:

Member Data Documentation

MAGIC

uint32_t database::protocol::message_header::MAGIC = 0xDB01DB01

staticconstexpr

Definition at line 79 of file database_protocol.h.

Referenced by is_valid(), and TEST_F().

magic

uint32_t database::protocol::message_header::magic = MAGIC

Definition at line 82 of file database_protocol.h.

Referenced by database::protocol::protocol_serializer::deserialize_header(), is_valid(), database::protocol::protocol_serializer::serialize_header(), TEST_F(), TEST_F(), and TEST_F().

payload_size

uint32_t database::protocol::message_header::payload_size

Definition at line 86 of file database_protocol.h.

Referenced by database::protocol::protocol_serializer::deserialize_header(), database::protocol::protocol_serializer::serialize_header(), TEST_F(), TEST_F(), TEST_F(), and TEST_F().

PROTOCOL_VERSION

uint16_t database::protocol::message_header::PROTOCOL_VERSION = 1

staticconstexpr

Definition at line 80 of file database_protocol.h.

Referenced by is_valid(), and TEST_F().

request_id

uint64_t database::protocol::message_header::request_id

Definition at line 85 of file database_protocol.h.

Referenced by database::protocol::protocol_serializer::deserialize_header(), database::protocol::protocol_serializer::serialize_header(), TEST_F(), TEST_F(), TEST_F(), and TEST_F().

type

message_type database::protocol::message_header::type

Definition at line 84 of file database_protocol.h.

Referenced by database::protocol::protocol_serializer::deserialize_header(), database::protocol::protocol_serializer::serialize_header(), TEST_F(), TEST_F(), TEST_F(), and TEST_F().

version

uint16_t database::protocol::message_header::version = PROTOCOL_VERSION

Definition at line 83 of file database_protocol.h.

Referenced by database::protocol::protocol_serializer::deserialize_header(), is_valid(), database::protocol::protocol_serializer::serialize_header(), TEST_F(), TEST_F(), and TEST_F().

---

The documentation for this struct was generated from the following file:

• database/protocol/database_protocol.h
