Thread-safe fixed-size circular buffer. More...

#include <circular_buffer.h>

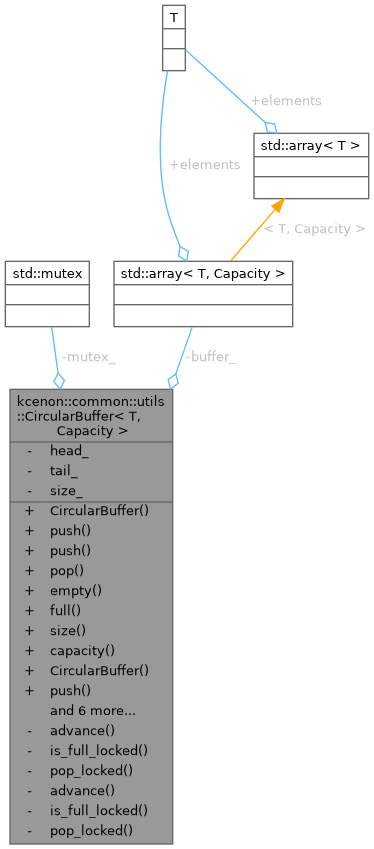

Collaboration diagram for kcenon::common::utils::CircularBuffer< T, Capacity >:

Public Member Functions
	CircularBuffer ()=default

bool	push (const T &value, bool overwrite=false)

bool	push (T &&value, bool overwrite=false)

std::optional< T >	pop ()

bool	empty () const

bool	full () const

std::size_t	size () const

constexpr std::size_t	capacity () const

	CircularBuffer ()=default

bool	push (const T &value, bool overwrite=false)
	Push a value to the buffer.

bool	push (T &&value, bool overwrite=false)

std::optional< T >	pop ()
	Pop a value from the buffer.

bool	empty () const

bool	full () const

std::size_t	size () const

constexpr std::size_t	capacity () const

Private Member Functions
void	advance (std::size_t &index) noexcept

bool	is_full_locked () const noexcept

std::optional< T >	pop_locked ()

void	advance (std::size_t &index) noexcept

bool	is_full_locked () const noexcept

std::optional< T >	pop_locked ()

Private Attributes
std::mutex	mutex_

std::array< T, Capacity >	buffer_ {}

std::size_t	head_ {0}

std::size_t	tail_ {0}

std::size_t	size_ {0}

Detailed Description

template<typename T, std::size_t Capacity>
class kcenon::common::utils::CircularBuffer< T, Capacity >

Thread-safe fixed-size circular buffer.

Template Parameters

T	Element type
Capacity	Maximum number of elements

Examples: utility_containers_example.cpp.

Definition at line 100 of file utils.cppm.

Constructor & Destructor Documentation

◆ CircularBuffer() [1/2]

template<typename T , std::size_t Capacity>

kcenon::common::utils::CircularBuffer< T, Capacity >::CircularBuffer ( )

default

◆ CircularBuffer() [2/2]

template<typename T , std::size_t Capacity>

kcenon::common::utils::CircularBuffer< T, Capacity >::CircularBuffer ( )

exportdefault

Member Function Documentation

◆ advance() [1/2]

template<typename T , std::size_t Capacity>

void kcenon::common::utils::CircularBuffer< T, Capacity >::advance ( std::size_t & index )

inlineprivatenoexcept

Definition at line 84 of file circular_buffer.h.

                                            {
        index = (index + 1) % Capacity;
    }

Referenced by kcenon::common::utils::CircularBuffer< T, Capacity >::pop_locked(), kcenon::common::utils::CircularBuffer< T, Capacity >::push(), and kcenon::common::utils::CircularBuffer< T, Capacity >::push().

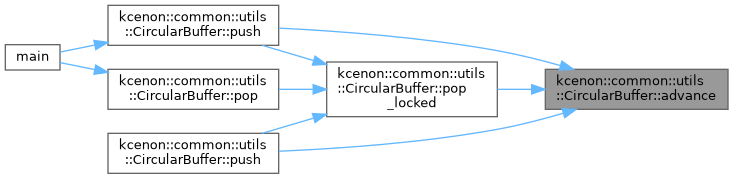

Here is the caller graph for this function:

◆ advance() [2/2]

template<typename T , std::size_t Capacity>

void kcenon::common::utils::CircularBuffer< T, Capacity >::advance ( std::size_t & index )

inlineexportprivatenoexcept

Definition at line 169 of file utils.cppm.

                                            {
        index = (index + 1) % Capacity;
    }

◆ capacity() [1/2]

template<typename T , std::size_t Capacity>

std::size_t kcenon::common::utils::CircularBuffer< T, Capacity >::capacity ( ) const

inlinenodiscardconstexpr

Definition at line 79 of file circular_buffer.h.

                                                       {
        return Capacity;
    }

◆ capacity() [2/2]

template<typename T , std::size_t Capacity>

std::size_t kcenon::common::utils::CircularBuffer< T, Capacity >::capacity ( ) const

inlinenodiscardconstexprexport

Definition at line 164 of file utils.cppm.

                                                       {
        return Capacity;
    }

◆ empty() [1/2]

template<typename T , std::size_t Capacity>

bool kcenon::common::utils::CircularBuffer< T, Capacity >::empty ( ) const

inlinenodiscard

Examples: utility_containers_example.cpp.

Definition at line 64 of file circular_buffer.h.

                                     {
        std::lock_guard<std::mutex> lock(mutex_);
        return size_ == 0;
    }

References kcenon::common::utils::CircularBuffer< T, Capacity >::mutex_, and kcenon::common::utils::CircularBuffer< T, Capacity >::size_.

Referenced by main().

Here is the caller graph for this function:

◆ empty() [2/2]

template<typename T , std::size_t Capacity>

bool kcenon::common::utils::CircularBuffer< T, Capacity >::empty ( ) const

inlinenodiscardexport

Definition at line 149 of file utils.cppm.

                                     {
        std::lock_guard<std::mutex> lock(mutex_);
        return size_ == 0;
    }

References kcenon::common::utils::CircularBuffer< T, Capacity >::mutex_, and kcenon::common::utils::CircularBuffer< T, Capacity >::size_.

◆ full() [1/2]

template<typename T , std::size_t Capacity>

bool kcenon::common::utils::CircularBuffer< T, Capacity >::full ( ) const

inlinenodiscard

Examples: utility_containers_example.cpp.

Definition at line 69 of file circular_buffer.h.

                                    {
        std::lock_guard<std::mutex> lock(mutex_);
        return size_ == Capacity;
    }

References kcenon::common::utils::CircularBuffer< T, Capacity >::mutex_, and kcenon::common::utils::CircularBuffer< T, Capacity >::size_.

Referenced by main().

Here is the caller graph for this function:

◆ full() [2/2]

template<typename T , std::size_t Capacity>

bool kcenon::common::utils::CircularBuffer< T, Capacity >::full ( ) const

inlinenodiscardexport

Definition at line 154 of file utils.cppm.

                                    {
        std::lock_guard<std::mutex> lock(mutex_);
        return size_ == Capacity;
    }

References kcenon::common::utils::CircularBuffer< T, Capacity >::mutex_, and kcenon::common::utils::CircularBuffer< T, Capacity >::size_.

◆ is_full_locked() [1/2]

template<typename T , std::size_t Capacity>

bool kcenon::common::utils::CircularBuffer< T, Capacity >::is_full_locked ( ) const

inlineprivatenoexcept

Definition at line 88 of file circular_buffer.h.

                                         {
        return size_ == Capacity;
    }

References kcenon::common::utils::CircularBuffer< T, Capacity >::size_.

Referenced by kcenon::common::utils::CircularBuffer< T, Capacity >::push(), and kcenon::common::utils::CircularBuffer< T, Capacity >::push().

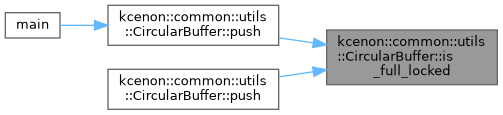

Here is the caller graph for this function:

◆ is_full_locked() [2/2]

template<typename T , std::size_t Capacity>

bool kcenon::common::utils::CircularBuffer< T, Capacity >::is_full_locked ( ) const

inlineexportprivatenoexcept

Definition at line 173 of file utils.cppm.

                                         {
        return size_ == Capacity;
    }

References kcenon::common::utils::CircularBuffer< T, Capacity >::size_.

◆ pop() [1/2]

template<typename T , std::size_t Capacity>

std::optional< T > kcenon::common::utils::CircularBuffer< T, Capacity >::pop ( )

inlinenodiscard

Examples: utility_containers_example.cpp.

Definition at line 59 of file circular_buffer.h.

                                       {
        std::lock_guard<std::mutex> lock(mutex_);
        return pop_locked();
    }

References kcenon::common::utils::CircularBuffer< T, Capacity >::mutex_, and kcenon::common::utils::CircularBuffer< T, Capacity >::pop_locked().

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ pop() [2/2]

template<typename T , std::size_t Capacity>

std::optional< T > kcenon::common::utils::CircularBuffer< T, Capacity >::pop ( )

inlinenodiscardexport

Pop a value from the buffer.

Returns: The oldest value, or nullopt if empty

Definition at line 144 of file utils.cppm.

                                       {
        std::lock_guard<std::mutex> lock(mutex_);
        return pop_locked();
    }

References kcenon::common::utils::CircularBuffer< T, Capacity >::mutex_, and kcenon::common::utils::CircularBuffer< T, Capacity >::pop_locked().

Here is the call graph for this function:

◆ pop_locked() [1/2]

template<typename T , std::size_t Capacity>

std::optional< T > kcenon::common::utils::CircularBuffer< T, Capacity >::pop_locked ( )

inlineprivate

Definition at line 92 of file circular_buffer.h.

                                {
        if (size_ == 0) {
            return std::nullopt;
        }
        auto value = std::move(buffer_[head_]);
        advance(head_);
        --size_;
        return value;
    }

References kcenon::common::utils::CircularBuffer< T, Capacity >::advance(), kcenon::common::utils::CircularBuffer< T, Capacity >::buffer_, kcenon::common::utils::CircularBuffer< T, Capacity >::head_, and kcenon::common::utils::CircularBuffer< T, Capacity >::size_.

Referenced by kcenon::common::utils::CircularBuffer< T, Capacity >::pop(), kcenon::common::utils::CircularBuffer< T, Capacity >::push(), and kcenon::common::utils::CircularBuffer< T, Capacity >::push().

Here is the call graph for this function:

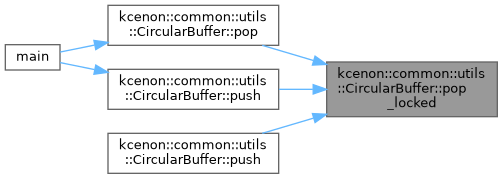

Here is the caller graph for this function:

◆ pop_locked() [2/2]

template<typename T , std::size_t Capacity>

std::optional< T > kcenon::common::utils::CircularBuffer< T, Capacity >::pop_locked ( )

inlineexportprivate

Definition at line 177 of file utils.cppm.

                                {
        if (size_ == 0) {
            return std::nullopt;
        }
        auto value = std::move(buffer_[head_]);
        advance(head_);
        --size_;
        return value;
    }

References kcenon::common::utils::CircularBuffer< T, Capacity >::advance(), kcenon::common::utils::CircularBuffer< T, Capacity >::buffer_, kcenon::common::utils::CircularBuffer< T, Capacity >::head_, and kcenon::common::utils::CircularBuffer< T, Capacity >::size_.

Here is the call graph for this function:

◆ push() [1/4]

template<typename T , std::size_t Capacity>

bool kcenon::common::utils::CircularBuffer< T, Capacity >::push	(	const T &	value,
		bool	overwrite = false )

inline

Examples: utility_containers_example.cpp.

Definition at line 31 of file circular_buffer.h.

                                                      {
        std::lock_guard<std::mutex> lock(mutex_);
        if (is_full_locked() && !overwrite) {
            return false;
        }
        if (is_full_locked()) {
            pop_locked();
        }
        buffer_[tail_] = value;
        advance(tail_);
        ++size_;
        return true;
    }

References kcenon::common::utils::CircularBuffer< T, Capacity >::advance(), kcenon::common::utils::CircularBuffer< T, Capacity >::buffer_, kcenon::common::utils::CircularBuffer< T, Capacity >::is_full_locked(), kcenon::common::utils::CircularBuffer< T, Capacity >::mutex_, kcenon::common::utils::CircularBuffer< T, Capacity >::pop_locked(), kcenon::common::utils::CircularBuffer< T, Capacity >::size_, and kcenon::common::utils::CircularBuffer< T, Capacity >::tail_.

Referenced by main().

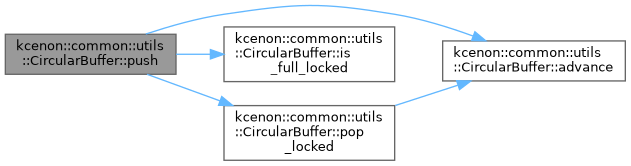

Here is the call graph for this function:

Here is the caller graph for this function:

◆ push() [2/4]

template<typename T , std::size_t Capacity>

bool kcenon::common::utils::CircularBuffer< T, Capacity >::push	(	const T &	value,
		bool	overwrite = false )

inlineexport

Push a value to the buffer.

Parameters

value	Value to push
overwrite	If true, overwrite oldest value when full

Returns: true if pushed successfully, false if full and overwrite is false

Definition at line 112 of file utils.cppm.

                                                      {
        std::lock_guard<std::mutex> lock(mutex_);
        if (is_full_locked() && !overwrite) {
            return false;
        }
        if (is_full_locked()) {
            pop_locked();
        }
        buffer_[tail_] = value;
        advance(tail_);
        ++size_;
        return true;
    }

References kcenon::common::utils::CircularBuffer< T, Capacity >::advance(), kcenon::common::utils::CircularBuffer< T, Capacity >::buffer_, kcenon::common::utils::CircularBuffer< T, Capacity >::is_full_locked(), kcenon::common::utils::CircularBuffer< T, Capacity >::mutex_, kcenon::common::utils::CircularBuffer< T, Capacity >::pop_locked(), kcenon::common::utils::CircularBuffer< T, Capacity >::size_, and kcenon::common::utils::CircularBuffer< T, Capacity >::tail_.

Here is the call graph for this function:

◆ push() [3/4]

template<typename T , std::size_t Capacity>

bool kcenon::common::utils::CircularBuffer< T, Capacity >::push	(	T &&	value,
		bool	overwrite = false )

inline

Definition at line 45 of file circular_buffer.h.

                                                 {
        std::lock_guard<std::mutex> lock(mutex_);
        if (is_full_locked() && !overwrite) {
            return false;
        }
        if (is_full_locked()) {
            pop_locked();
        }
        buffer_[tail_] = std::move(value);
        advance(tail_);
        ++size_;
        return true;
    }

References kcenon::common::utils::CircularBuffer< T, Capacity >::advance(), kcenon::common::utils::CircularBuffer< T, Capacity >::buffer_, kcenon::common::utils::CircularBuffer< T, Capacity >::is_full_locked(), kcenon::common::utils::CircularBuffer< T, Capacity >::mutex_, kcenon::common::utils::CircularBuffer< T, Capacity >::pop_locked(), kcenon::common::utils::CircularBuffer< T, Capacity >::size_, and kcenon::common::utils::CircularBuffer< T, Capacity >::tail_.

Here is the call graph for this function:

◆ push() [4/4]

template<typename T , std::size_t Capacity>

bool kcenon::common::utils::CircularBuffer< T, Capacity >::push	(	T &&	value,
		bool	overwrite = false )

inlineexport

Definition at line 126 of file utils.cppm.

                                                 {
        std::lock_guard<std::mutex> lock(mutex_);
        if (is_full_locked() && !overwrite) {
            return false;
        }
        if (is_full_locked()) {
            pop_locked();
        }
        buffer_[tail_] = std::move(value);
        advance(tail_);
        ++size_;
        return true;
    }

References kcenon::common::utils::CircularBuffer< T, Capacity >::advance(), kcenon::common::utils::CircularBuffer< T, Capacity >::buffer_, kcenon::common::utils::CircularBuffer< T, Capacity >::is_full_locked(), kcenon::common::utils::CircularBuffer< T, Capacity >::mutex_, kcenon::common::utils::CircularBuffer< T, Capacity >::pop_locked(), kcenon::common::utils::CircularBuffer< T, Capacity >::size_, and kcenon::common::utils::CircularBuffer< T, Capacity >::tail_.

Here is the call graph for this function:

◆ size() [1/2]

template<typename T , std::size_t Capacity>

std::size_t kcenon::common::utils::CircularBuffer< T, Capacity >::size ( ) const

inlinenodiscard

Examples: utility_containers_example.cpp.

Definition at line 74 of file circular_buffer.h.

                                         {
        std::lock_guard<std::mutex> lock(mutex_);
        return size_;
    }

References kcenon::common::utils::CircularBuffer< T, Capacity >::mutex_, and kcenon::common::utils::CircularBuffer< T, Capacity >::size_.

Referenced by main().

Here is the caller graph for this function:

◆ size() [2/2]

template<typename T , std::size_t Capacity>

std::size_t kcenon::common::utils::CircularBuffer< T, Capacity >::size ( ) const

inlinenodiscardexport

Definition at line 159 of file utils.cppm.

                                         {
        std::lock_guard<std::mutex> lock(mutex_);
        return size_;
    }

References kcenon::common::utils::CircularBuffer< T, Capacity >::mutex_, and kcenon::common::utils::CircularBuffer< T, Capacity >::size_.

Member Data Documentation

◆ buffer_

template<typename T , std::size_t Capacity>

std::array< T, Capacity > kcenon::common::utils::CircularBuffer< T, Capacity >::buffer_ {}

exportprivate

Definition at line 103 of file circular_buffer.h.

103{};

Referenced by kcenon::common::utils::CircularBuffer< T, Capacity >::pop_locked(), kcenon::common::utils::CircularBuffer< T, Capacity >::push(), and kcenon::common::utils::CircularBuffer< T, Capacity >::push().

◆ head_

template<typename T , std::size_t Capacity>

std::size_t kcenon::common::utils::CircularBuffer< T, Capacity >::head_ {0}

exportprivate

Definition at line 104 of file circular_buffer.h.

104{0};

Referenced by kcenon::common::utils::CircularBuffer< T, Capacity >::pop_locked().

◆ mutex_

template<typename T , std::size_t Capacity>

std::mutex kcenon::common::utils::CircularBuffer< T, Capacity >::mutex_

mutableexportprivate

Definition at line 102 of file circular_buffer.h.

Referenced by kcenon::common::utils::CircularBuffer< T, Capacity >::empty(), kcenon::common::utils::CircularBuffer< T, Capacity >::full(), kcenon::common::utils::CircularBuffer< T, Capacity >::pop(), kcenon::common::utils::CircularBuffer< T, Capacity >::push(), kcenon::common::utils::CircularBuffer< T, Capacity >::push(), and kcenon::common::utils::CircularBuffer< T, Capacity >::size().

◆ size_

template<typename T , std::size_t Capacity>

std::size_t kcenon::common::utils::CircularBuffer< T, Capacity >::size_ {0}

exportprivate

Definition at line 106 of file circular_buffer.h.

106{0};

Referenced by kcenon::common::utils::CircularBuffer< T, Capacity >::empty(), kcenon::common::utils::CircularBuffer< T, Capacity >::full(), kcenon::common::utils::CircularBuffer< T, Capacity >::is_full_locked(), kcenon::common::utils::CircularBuffer< T, Capacity >::pop_locked(), kcenon::common::utils::CircularBuffer< T, Capacity >::push(), kcenon::common::utils::CircularBuffer< T, Capacity >::push(), and kcenon::common::utils::CircularBuffer< T, Capacity >::size().

◆ tail_

template<typename T , std::size_t Capacity>

std::size_t kcenon::common::utils::CircularBuffer< T, Capacity >::tail_ {0}

exportprivate

Definition at line 105 of file circular_buffer.h.

105{0};

Referenced by kcenon::common::utils::CircularBuffer< T, Capacity >::push(), and kcenon::common::utils::CircularBuffer< T, Capacity >::push().

The documentation for this class was generated from the following files:

include/kcenon/common/utils/circular_buffer.h
src/modules/utils.cppm

Public Member Functions

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ CircularBuffer() [1/2]

◆ CircularBuffer() [2/2]

Member Function Documentation

◆ advance() [1/2]

◆ advance() [2/2]

◆ capacity() [1/2]

◆ capacity() [2/2]

◆ empty() [1/2]

◆ empty() [2/2]

◆ full() [1/2]

◆ full() [2/2]

◆ is_full_locked() [1/2]

◆ is_full_locked() [2/2]

◆ pop() [1/2]

◆ pop() [2/2]

◆ pop_locked() [1/2]

◆ pop_locked() [2/2]

◆ push() [1/4]

◆ push() [2/4]

◆ push() [3/4]

◆ push() [4/4]

◆ size() [1/2]

◆ size() [2/2]

Member Data Documentation

◆ buffer_

◆ head_

◆ mutex_

◆ size_

◆ tail_
