Abstract interface for UDP client implementations. More...

#include <udp_client_interface.h>

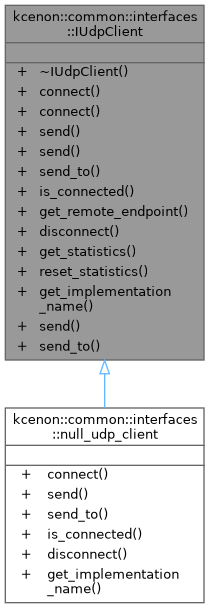

Inheritance diagram for kcenon::common::interfaces::IUdpClient:

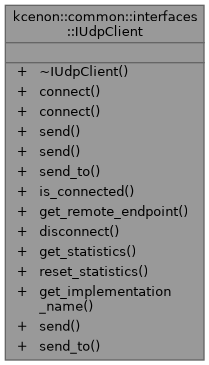

Collaboration diagram for kcenon::common::interfaces::IUdpClient:

Public Member Functions
virtual	~IUdpClient ()=default

virtual::kcenon::common::VoidResult	connect (const std::string &host, uint16_t port)=0
	Connect to a remote endpoint for optimized sending.

virtual::kcenon::common::VoidResult	connect (const udp_endpoint &endpoint)
	Connect to a remote endpoint.

virtual::kcenon::common::VoidResult	send (std::span< const uint8_t > data)=0
	Send data to the connected endpoint.

virtual::kcenon::common::VoidResult	send (std::span< const uint8_t > data, const udp_send_options &options)
	Send data to the connected endpoint with options.

virtual::kcenon::common::VoidResult	send_to (std::span< const uint8_t > data, const udp_endpoint &endpoint)=0
	Send data to a specific endpoint (connectionless)

virtual bool	is_connected () const =0
	Check if the client is connected to an endpoint.

virtual std::optional< udp_endpoint >	get_remote_endpoint () const
	Get the currently connected endpoint.

virtual void	disconnect ()=0
	Disconnect from the current endpoint.

virtual udp_statistics	get_statistics () const
	Get send statistics.

virtual void	reset_statistics ()
	Reset statistics.

virtual std::string	get_implementation_name () const
	Get the implementation name for logging/debugging.

::kcenon::common::VoidResult	send (const std::string &data)
	Send string data to the connected endpoint.

::kcenon::common::VoidResult	send_to (const std::string &data, const udp_endpoint &endpoint)
	Send string data to a specific endpoint.

Detailed Description

Abstract interface for UDP client implementations.

This interface defines the contract for UDP client implementations, allowing modules to send UDP datagrams without direct dependencies on specific networking libraries (e.g., ASIO, socket API, etc.).

Note: UDP is connectionless, but this interface provides optional "connected" mode for performance optimization when sending multiple datagrams to the same endpoint.; Implementations should be thread-safe for concurrent sends.

Example usage:

// Connect to a metrics server
auto result = client->connect("metrics.example.com", 8125);
if (result.is_ok()) {
    // Send StatsD-formatted metric
    std::string metric = "app.requests.count:1|c";
    client->send(std::span<const uint8_t>(
        reinterpret_cast<const uint8_t*>(metric.data()),
        metric.size()));
}

Definition at line 136 of file udp_client_interface.h.

Constructor & Destructor Documentation

◆ ~IUdpClient()

virtual kcenon::common::interfaces::IUdpClient::~IUdpClient ( )

virtualdefault

Member Function Documentation

◆ connect() [1/2]

virtual::kcenon::common::VoidResult kcenon::common::interfaces::IUdpClient::connect	(	const std::string &	host,
		uint16_t	port )

pure virtual

Connect to a remote endpoint for optimized sending.

This establishes a "connected" UDP socket, which allows the kernel to cache routing information and perform error checking.

Parameters

host	Remote hostname or IP address
port	Remote port number

Returns: VoidResult indicating success or error

Implemented in kcenon::common::interfaces::null_udp_client.

Referenced by connect().

Here is the caller graph for this function:

◆ connect() [2/2]

virtual::kcenon::common::VoidResult kcenon::common::interfaces::IUdpClient::connect ( const udp_endpoint & endpoint )

inline

Connect to a remote endpoint.

Parameters

endpoint Remote endpoint

Returns: VoidResult indicating success or error

Definition at line 157 of file udp_client_interface.h.

                                                                         {
        return connect(endpoint.host, endpoint.port);
    }

References connect(), kcenon::common::interfaces::udp_endpoint::host, and kcenon::common::interfaces::udp_endpoint::port.

Here is the call graph for this function:

◆ disconnect()

virtual void kcenon::common::interfaces::IUdpClient::disconnect ( )

pure virtual

Disconnect from the current endpoint.

After disconnecting, send() will fail until connect() is called again. send_to() can still be used for connectionless sends.

Implemented in kcenon::common::interfaces::null_udp_client.

◆ get_implementation_name()

virtual std::string kcenon::common::interfaces::IUdpClient::get_implementation_name ( ) const

inlinenodiscardvirtual

Get the implementation name for logging/debugging.

Returns: Implementation identifier string

Implemented in kcenon::common::interfaces::null_udp_client.

Definition at line 236 of file udp_client_interface.h.

                                                                    {
        return "IUdpClient";
    }

◆ get_remote_endpoint()

virtual std::optional< udp_endpoint > kcenon::common::interfaces::IUdpClient::get_remote_endpoint ( ) const

inlinenodiscardvirtual

Get the currently connected endpoint.

Returns: Optional containing endpoint if connected

Definition at line 207 of file udp_client_interface.h.

                                                                                {
        return std::nullopt;
    }

◆ get_statistics()

virtual udp_statistics kcenon::common::interfaces::IUdpClient::get_statistics ( ) const

inlinenodiscardvirtual

Get send statistics.

Returns: Current statistics

Definition at line 223 of file udp_client_interface.h.

                                                                {
        return {};
    }

◆ is_connected()

virtual bool kcenon::common::interfaces::IUdpClient::is_connected ( ) const

nodiscardpure virtual

Check if the client is connected to an endpoint.

Returns: true if connected, false otherwise

Implemented in kcenon::common::interfaces::null_udp_client.

◆ reset_statistics()

virtual void kcenon::common::interfaces::IUdpClient::reset_statistics ( )

inlinevirtual

Reset statistics.

Definition at line 230 of file udp_client_interface.h.

230{}

◆ send() [1/3]

::kcenon::common::VoidResult kcenon::common::interfaces::IUdpClient::send ( const std::string & data )

inline

Send string data to the connected endpoint.

Parameters

data	String to send

Returns: VoidResult indicating success or error

Definition at line 247 of file udp_client_interface.h.

                                                       {
        return send(std::span<const uint8_t>(
            reinterpret_cast<const uint8_t*>(data.data()),
            data.size()));
    }

References send().

Here is the call graph for this function:

◆ send() [2/3]

virtual::kcenon::common::VoidResult kcenon::common::interfaces::IUdpClient::send ( std::span< const uint8_t > data )

pure virtual

Send data to the connected endpoint.

Requires a prior successful call to connect().

Parameters

data	Data to send

Returns: VoidResult indicating success or error

Implemented in kcenon::common::interfaces::null_udp_client.

Referenced by send(), and send().

Here is the caller graph for this function:

◆ send() [3/3]

virtual::kcenon::common::VoidResult kcenon::common::interfaces::IUdpClient::send	(	std::span< const uint8_t >	data,
		const udp_send_options &	options )

inline

Send data to the connected endpoint with options.

Parameters

data	Data to send
options	Send options

Returns: VoidResult indicating success or error

Definition at line 178 of file udp_client_interface.h.

                                                             {
        // Default implementation ignores options
        (void)options;
        return send(data);
    }

References send().

Here is the call graph for this function:

◆ send_to() [1/2]

::kcenon::common::VoidResult kcenon::common::interfaces::IUdpClient::send_to	(	const std::string &	data,
		const udp_endpoint &	endpoint )

inline

Send string data to a specific endpoint.

Parameters

data	String to send
endpoint	Target endpoint

Returns: VoidResult indicating success or error

Definition at line 259 of file udp_client_interface.h.

                                                                                        {
        return send_to(std::span<const uint8_t>(
            reinterpret_cast<const uint8_t*>(data.data()),
            data.size()), endpoint);
    }

References send_to().

Here is the call graph for this function:

◆ send_to() [2/2]

virtual::kcenon::common::VoidResult kcenon::common::interfaces::IUdpClient::send_to	(	std::span< const uint8_t >	data,
		const udp_endpoint &	endpoint )

pure virtual

Send data to a specific endpoint (connectionless)

Sends data without requiring a prior connect() call.

Parameters

data	Data to send
endpoint	Target endpoint

Returns: VoidResult indicating success or error

Implemented in kcenon::common::interfaces::null_udp_client.

Referenced by send_to().

Here is the caller graph for this function:

The documentation for this interface was generated from the following file:

include/kcenon/common/interfaces/transport/udp_client_interface.h
