kcenon::common::interfaces::IMetricCollector Interface Reference

Abstract interface for collecting metrics across modules. More...

#include <metric_collector_interface.h>

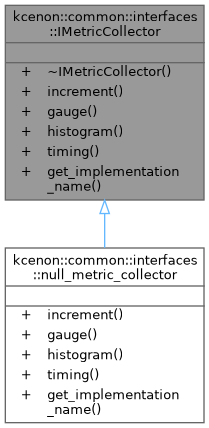

Inheritance diagram for kcenon::common::interfaces::IMetricCollector:

Collaboration diagram for kcenon::common::interfaces::IMetricCollector:

Public Member Functions
virtual	~IMetricCollector ()=default
virtual void	increment (std::string_view name, double value=1.0, const metric_labels &labels={})=0
	Increment a counter metric.
virtual void	gauge (std::string_view name, double value, const metric_labels &labels={})=0
	Set a gauge metric to an absolute value.
virtual void	histogram (std::string_view name, double value, const metric_labels &labels={})=0
	Record a histogram observation.
virtual void	timing (std::string_view name, std::chrono::nanoseconds duration, const metric_labels &labels={})=0
	Record a timing measurement.
virtual std::string	get_implementation_name () const
	Get the implementation name for logging/debugging.

Detailed Description

Abstract interface for collecting metrics across modules.

This interface defines the contract for metric collection implementations, allowing modules to emit metrics without direct dependencies on specific monitoring backends (e.g., Prometheus, StatsD, OpenTelemetry).

Note

Implementations should be thread-safe for concurrent metric emission.

Example usage:

// Counter - monotonically increasing value
collector->increment("http_requests_total", 1.0, {{"method", "GET"}});

// Gauge - value that can go up or down
collector->gauge("active_connections", 42.0);

// Histogram - distribution of values
collector->histogram("request_size_bytes", 1024.0);

// Timing - duration measurement
collector->timing("request_duration", std::chrono::milliseconds{150});

Definition at line 68 of file metric_collector_interface.h.

Constructor & Destructor Documentation

~IMetricCollector()

virtual kcenon::common::interfaces::IMetricCollector::~IMetricCollector ( )

virtualdefault

Member Function Documentation

gauge()

virtual void kcenon::common::interfaces::IMetricCollector::gauge ( std::string_view name, double value, const metric_labels & labels = {} )

pure virtual

Set a gauge metric to an absolute value.

Gauges represent instantaneous values that can go up or down, such as temperature, memory usage, or active connections.

Parameters

name	Metric name
value	Current value (can be negative)
labels	Optional dimensional labels

Implemented in kcenon::common::interfaces::null_metric_collector.

get_implementation_name()

virtual std::string kcenon::common::interfaces::IMetricCollector::get_implementation_name ( ) const

inlinenodiscardvirtual

Get the implementation name for logging/debugging.

Returns

Implementation identifier string

Implemented in kcenon::common::interfaces::null_metric_collector.

Definition at line 132 of file metric_collector_interface.h.

                                                                    {
        return "IMetricCollector";
    }

histogram()

virtual void kcenon::common::interfaces::IMetricCollector::histogram ( std::string_view name, double value, const metric_labels & labels = {} )

pure virtual

Record a histogram observation.

Histograms track the distribution of values across configurable buckets, useful for measuring sizes, counts, or any discrete values.

Parameters

name	Metric name
value	Observed value
labels	Optional dimensional labels

Implemented in kcenon::common::interfaces::null_metric_collector.

increment()

virtual void kcenon::common::interfaces::IMetricCollector::increment ( std::string_view name, double value = 1.0, const metric_labels & labels = {} )

pure virtual

Increment a counter metric.

Counters are monotonically increasing values, typically used for counting events (requests, errors, completed jobs, etc.).

Parameters

name	Metric name (should follow naming conventions, e.g., snake_case)
value	Increment value (default: 1.0, must be non-negative)
labels	Optional dimensional labels for filtering/grouping

Implemented in kcenon::common::interfaces::null_metric_collector.

timing()

virtual void kcenon::common::interfaces::IMetricCollector::timing ( std::string_view name, std::chrono::nanoseconds duration, const metric_labels & labels = {} )

pure virtual

Record a timing measurement.

Timing metrics are specialized histograms for duration measurements. Implementations may convert to appropriate units (ms, s, etc.).

Parameters

name	Metric name
duration	Duration measurement
labels	Optional dimensional labels

Implemented in kcenon::common::interfaces::null_metric_collector.

Referenced by kcenon::common::interfaces::scoped_timer::~scoped_timer().

Here is the caller graph for this function:

---

The documentation for this interface was generated from the following file:

• include/kcenon/common/interfaces/monitoring/metric_collector_interface.h
